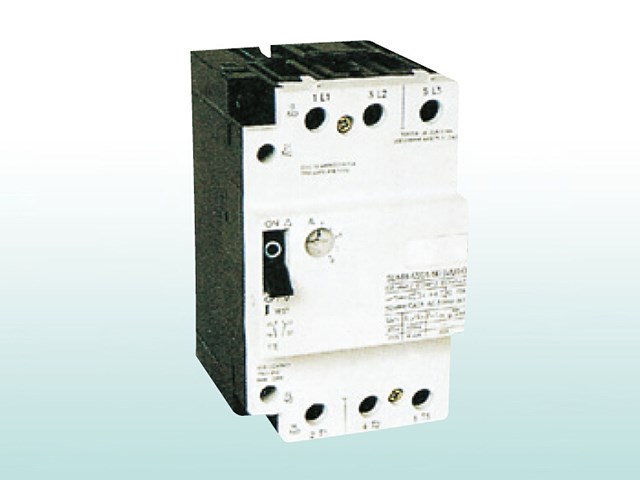

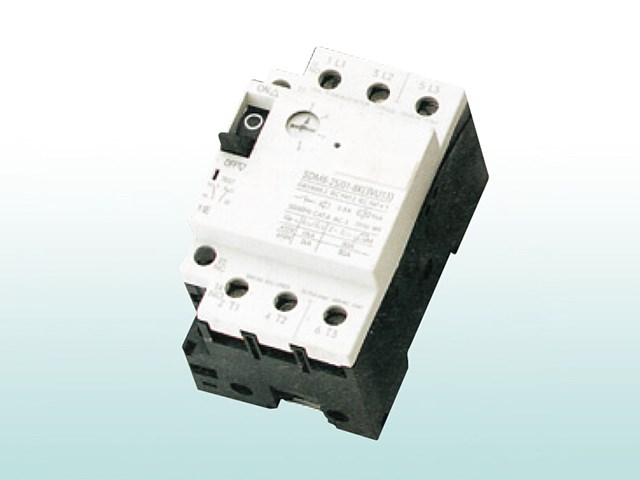

3VU Motor Protection Circuit Breaker
3VU Motor Protection Circuit Breaker
3VU Motor Protection Circuit Breaker

3VU Circuit breakers are applicable for circuit of AC 50Hz(or 60Hz), rated insulation Voltage 750V,rated operating Voltage under AC 660V, rated operating current 0.1-52A which is used for protecting the motor against overload, short-circuit and phase-failure.

Description

Application


3VU Circuit breakers are applicable for circuit of AC 50Hz(or 60Hz), rated insulation Voltage 750V,rated operating Voltage under AC 660V, rated operating current 0.1-52A which is used for protecting the motor against overload, short-circuit and phase-failure. It can also be used for staring and breaking the starter of motor, and circuit protection in the circuit of 63A.

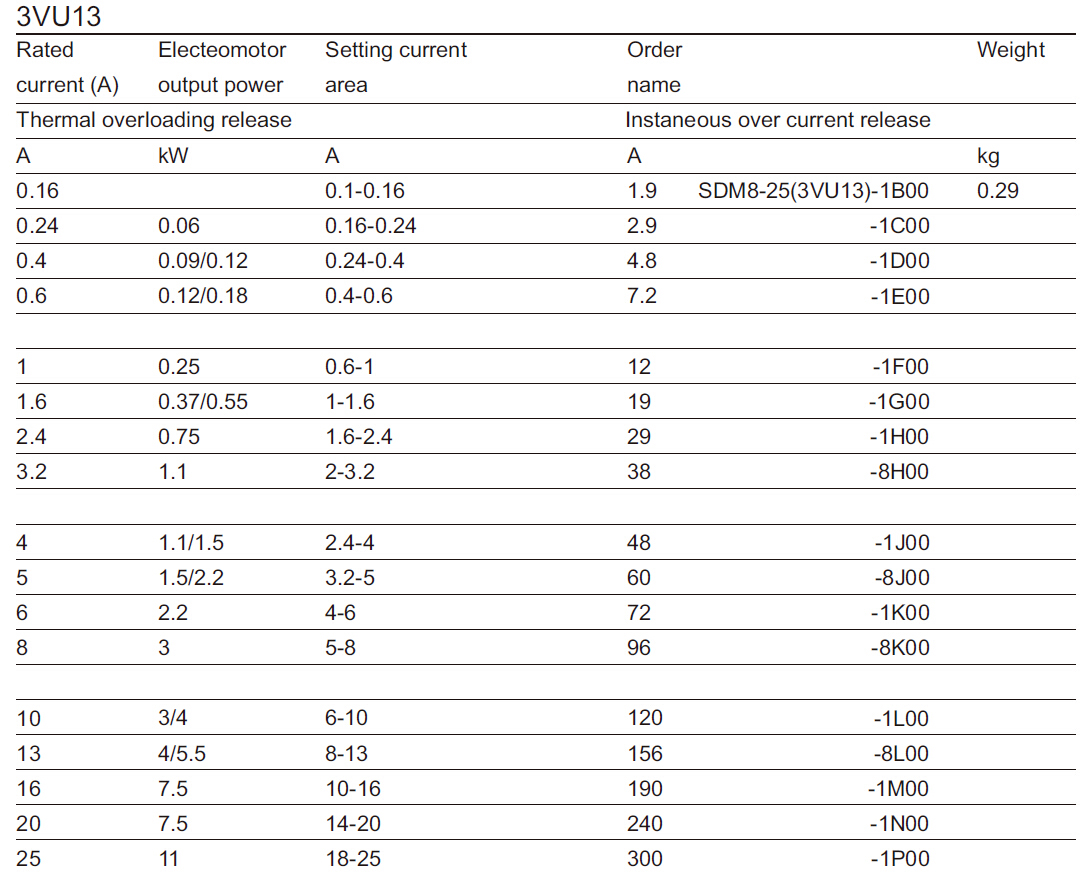

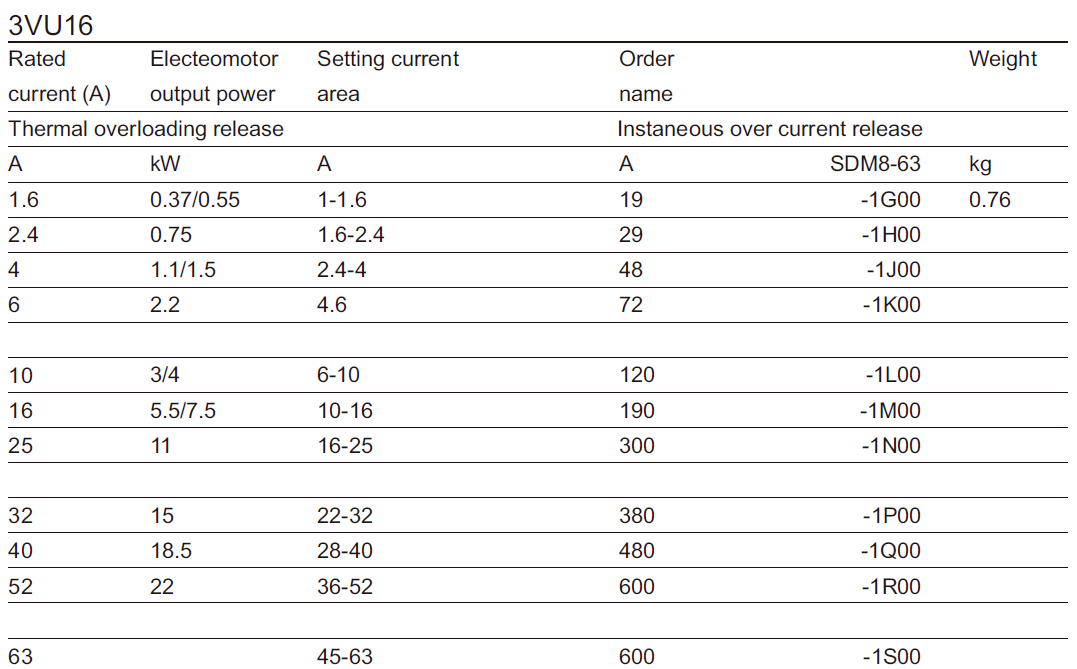

Specification
