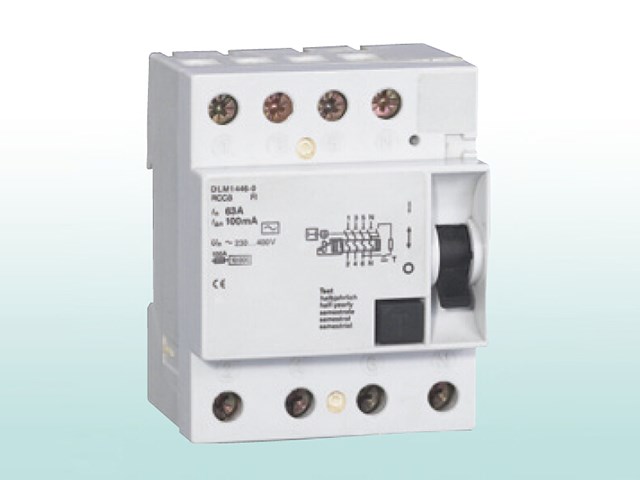

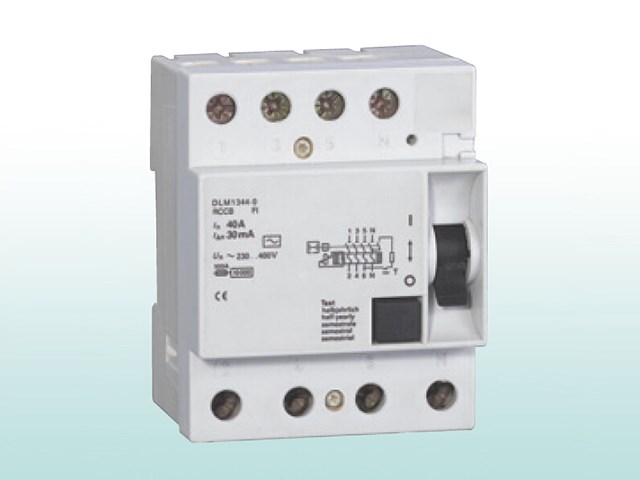

5SM1 Series Earth Leakage Circuit Breaker
5SM1 Series Earth Leakage Circuit Breaker
5SM1 Series Earth Leakage Circuit Breaker

Series 5SM1 earth leakage breakers apply to in AC circuit of frequency of 50 Hz, rated voltage up to 415V, rated current up to 80A.

Description

Application

Series 5SM1 earth leakage breakers apply to in AC circuit of frequency of 50 Hz, rated voltage up to 415V, rated current up to 80A. It is mainly used as an indirect contact protection fot human. It also can be used to prevent against the fire danger caused by earth falt current owing to equipment insulation damage. When the proective measures of the electric shock are out of work, the RCCB whose rated residual operating current less than 30mA can serve as the supplementary protection for in direct contact, but it can’t be used an the sole direct contact, but it can’t be used as the sole direct contact protection.


Product features

1. Series 5SM1 Leakage Breakers are the protector for pure electromagnetic residual current operation.
2. The operation function is unrelated to circuit voltage, but operation is reliable.
3. It can be reliably operated on the loss of phase or neutral.
4. The capacity of resisting electromagnetic interference is strong.

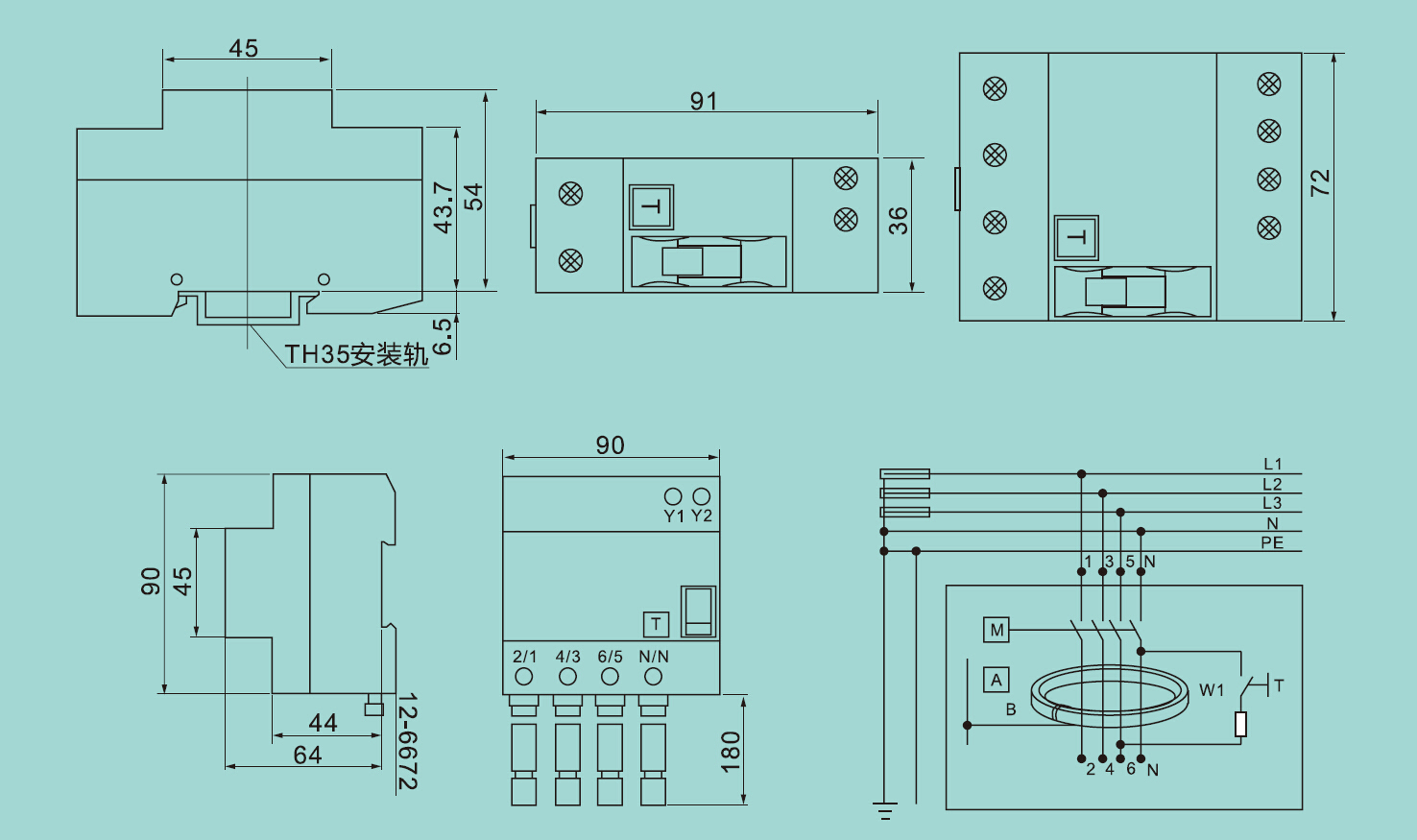

Operation Principle Fig

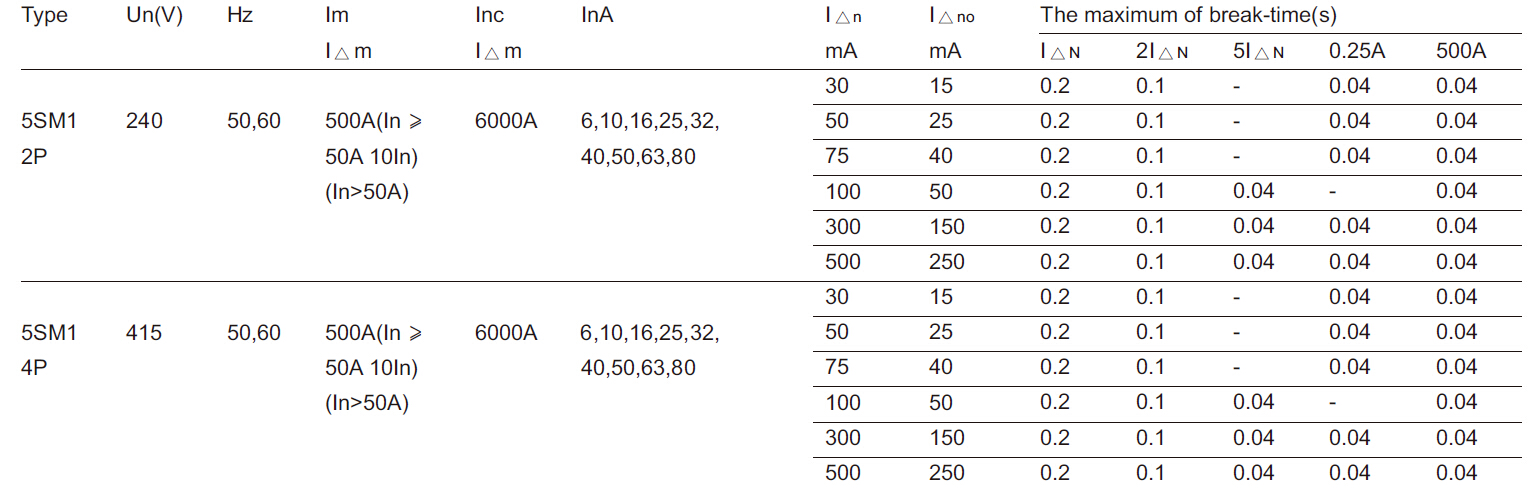

Main Technical Data
