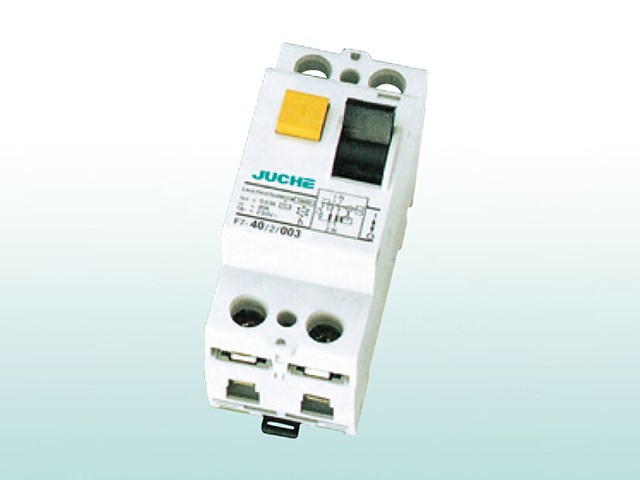

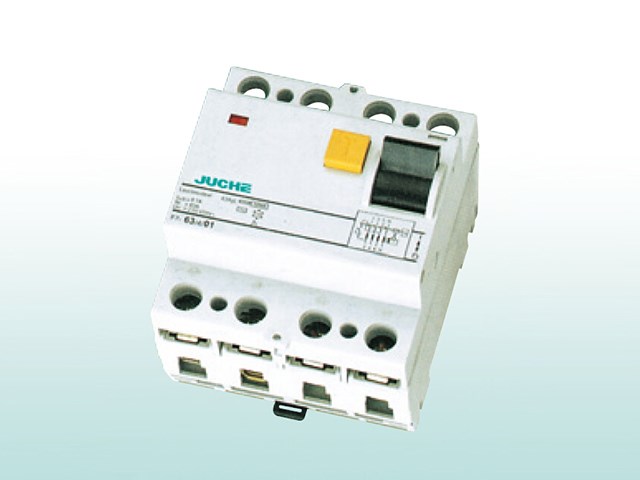

F7 Residual Current Device
F7 Residual Current Device
F7 Residual Current Device

The RCD is in conform with the standards of IEC1008, GB16916 and BS4293, The RCD can cut off the fault circuit immediately on the shock hazard or earth leakage of trunk ,Thus it is suitable to avoid the shock and fire caused by earth leakage.

Description

Application


The RCD is in conform with the standards of IEC1008, GB16916 and BS4293, The RCD can cut off the fault circuit immediately on the shock hazard or earth leakage of trunk ,Thus it is suitable to avoid the shock and fire caused by earth leakage.
The RCD is mainly suitable for use in variety of plants and enterprises, construction, commerce, guesthouses and families. It can be used in circuit single phase 230V, three phase400V 50to 60Hz. RCD is not suitable for use DC pulse system.


Technical Date

Standard: IEC1008
Rated voltage (Un): 2 pole: 230V AC
4 pole: 400V AC
Rated current (In): 25,40,63A
Rated residual operating current (I n): 30,100,500mA
Residual current off-time: 0.1S
Minimum value of rated making and breaking capacity(Im): 63A
Rated conditional short-circuit current(Inc):

In=25,40A
Inc=1500A
In=63A
Inc=3000A


Endurance:
INSTALLATION
On load: 2000 cycles
on symmetrical DIN rail
Off load: 2000 cycles
panel mounting

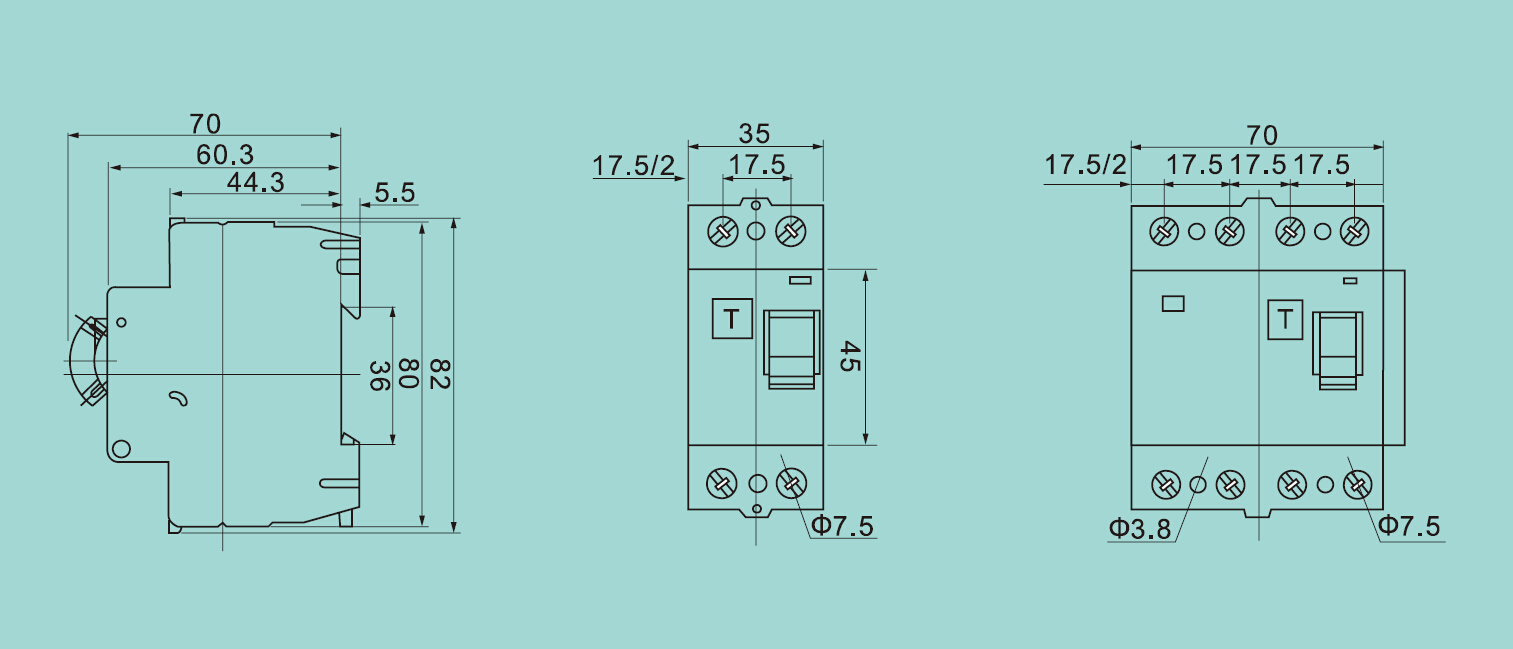

Dimensions(mm)
