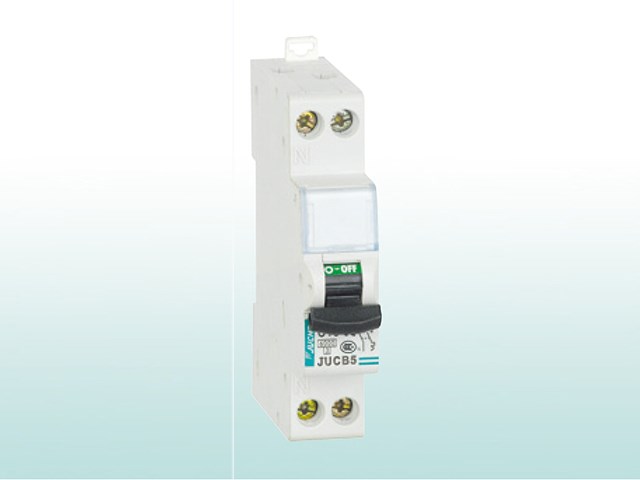

JUCB5 Series Mini Circuit Breaker
JUCB5 Series Mini Circuit Breaker
JUCB5 Series Mini Circuit Breaker

JUCB5 series is mainly for protection of circuits with AC220V and 50Hz/60Hz, and for unfrequent conversion under normal conditions as well.

Description

Application


JUCB5 series is mainly for protection of circuits with AC220V and 50Hz/60Hz, and for unfrequent conversion under normal conditions as well. Its action can be up to two pole with its only one pole volume and be used as a leakage breaker by assembling with leakage. It is produced as per EN60.898, IEC947-2 standards.

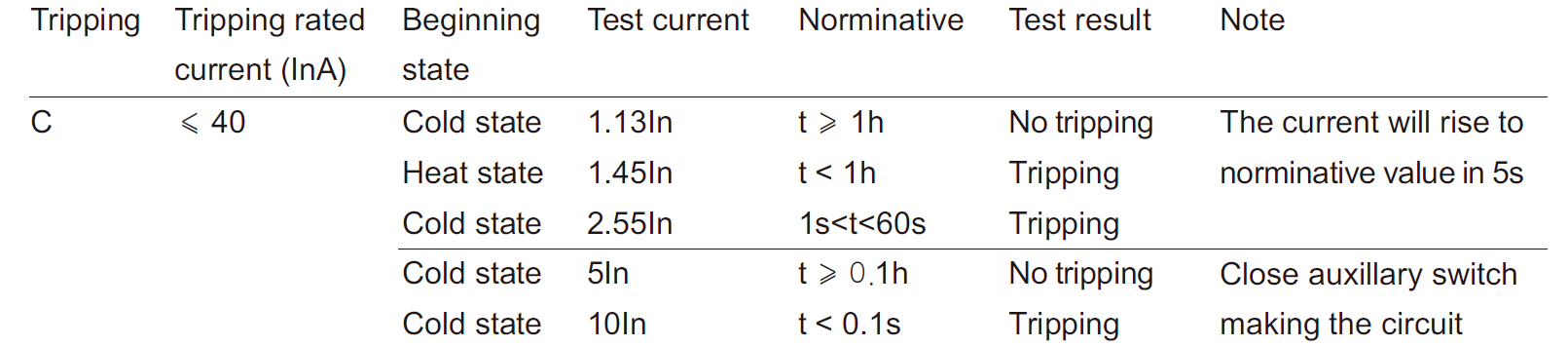

Over-current tripping characterstic

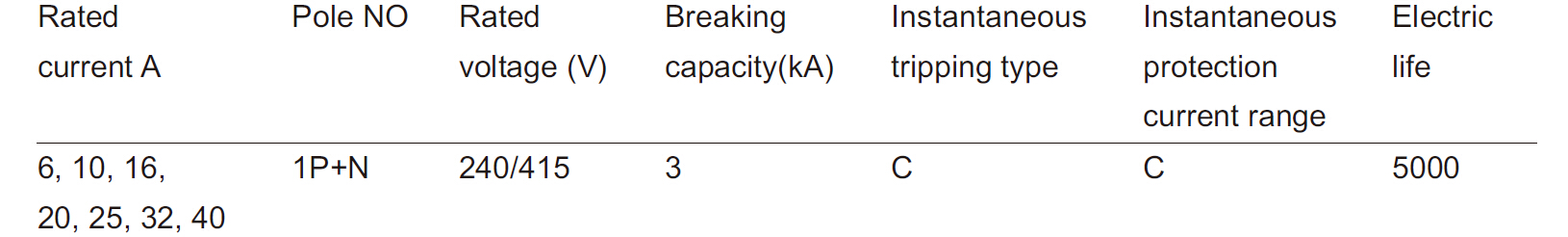

Main technicd data:

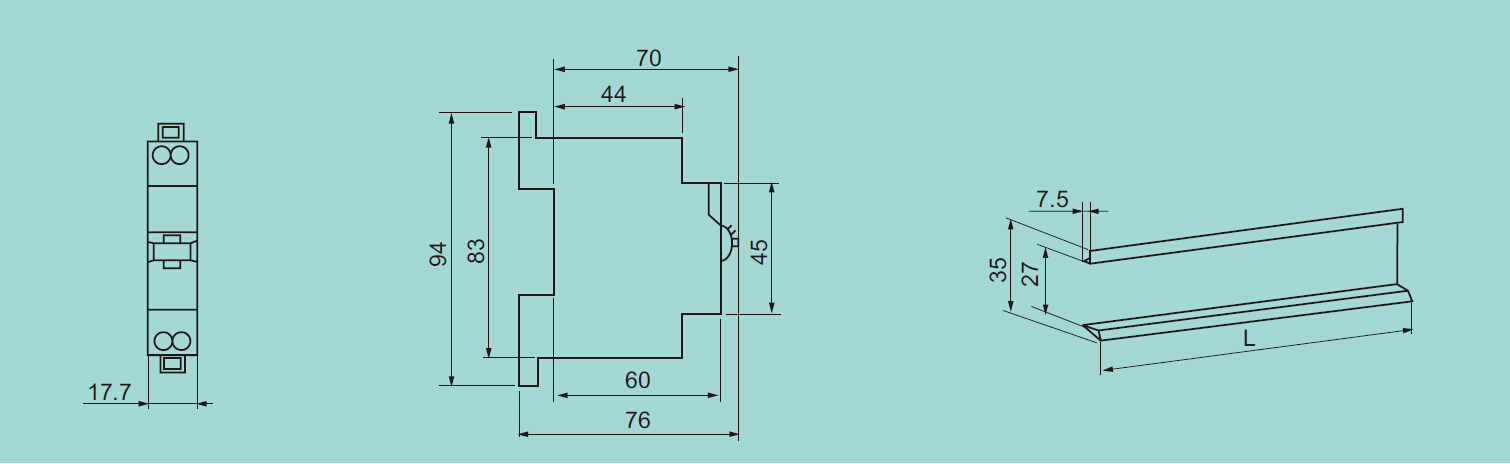

Dimensions
