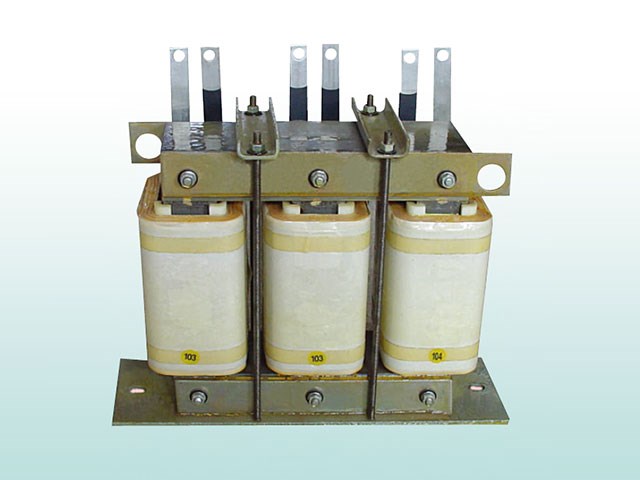

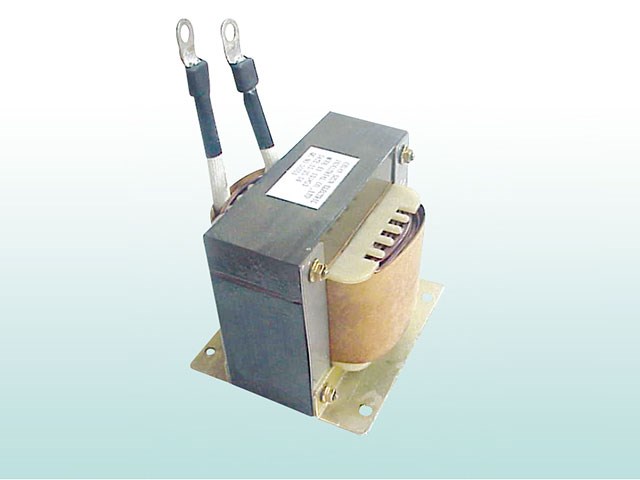

Rectifying Reactor
Rectifying Reactor
Rectifying Reactor

Rectifying reactor is used to reduce the harmonic wave in line current, limit short-circuit current, enables the wave crest and wave trough of line voltage to be attenuated, consequently, it prolongs service life of semiconductor device, limits conversion current during switching moment.

Description

Technical parameters

Rated current : 5-400A
Voltage drop: 2, 4, 6, 8, 12%
Tolerance of inductance value: 5%
Rated line voltage: <1000V
Rated frequency: 50/60Hz
Cooling mode: natural air or forced air cooling
Ambient temperature -5 to +40
Insulation system: B, F, H
Use: on rectifying power supplies, and power supplies of spot welder, high-power UPS, EPS, various large-scale industrial equipment and communication equipment.


Application

Rectifying reactor is used to reduce the harmonic wave in line current, limit short-circuit current, enables the wave crest and wave trough of line voltage to be attenuated, consequently, it prolongs service life of semiconductor device, limits conversion current during switching moment.
