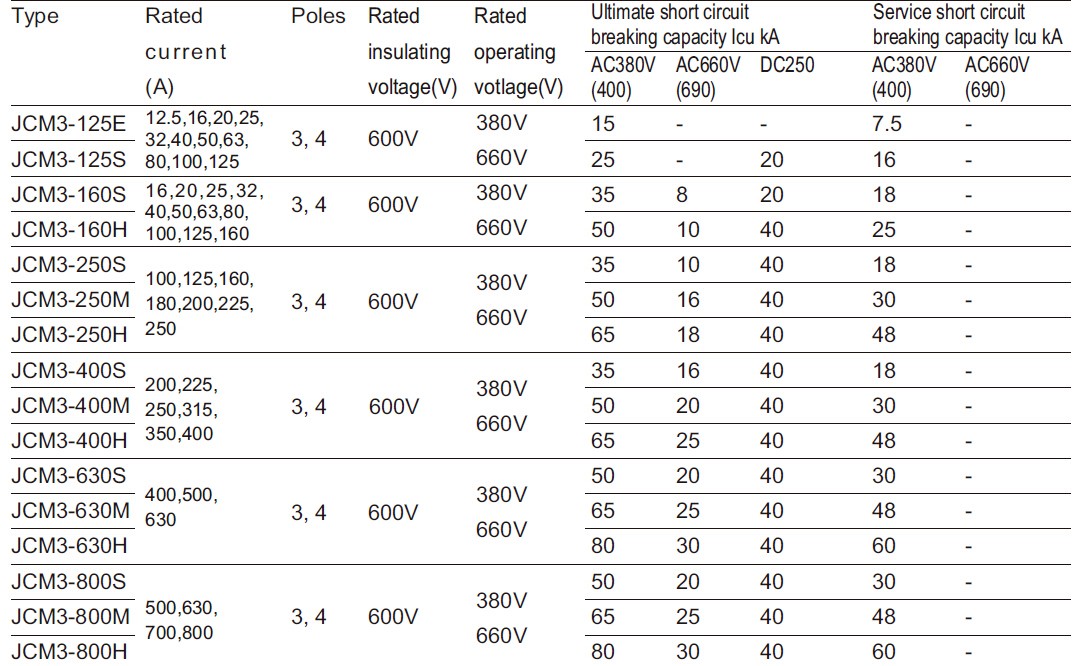

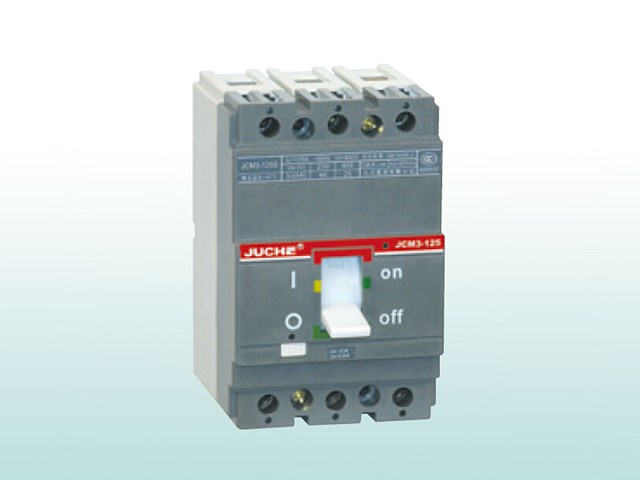

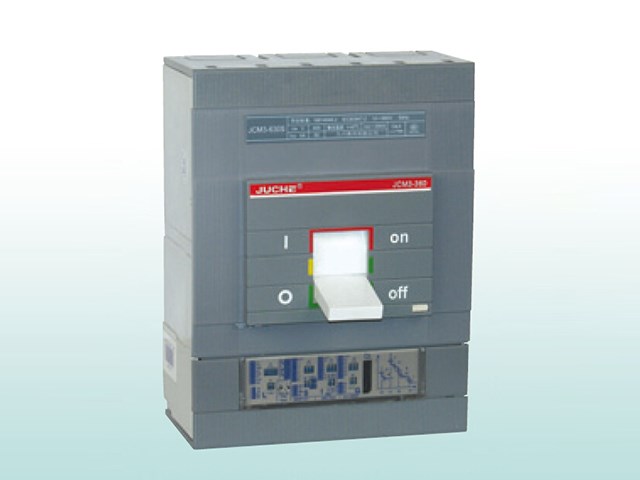

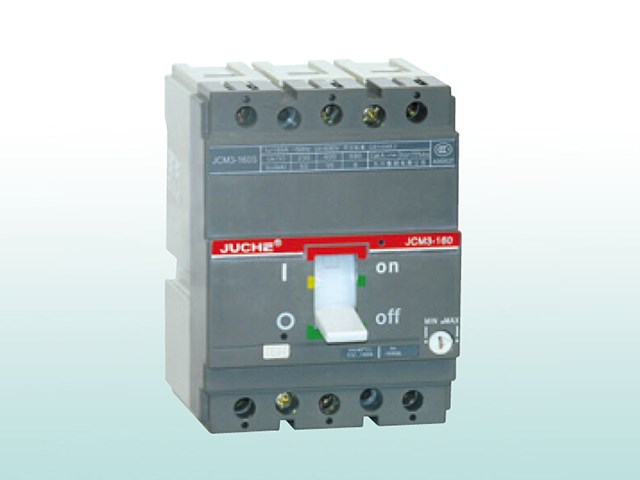

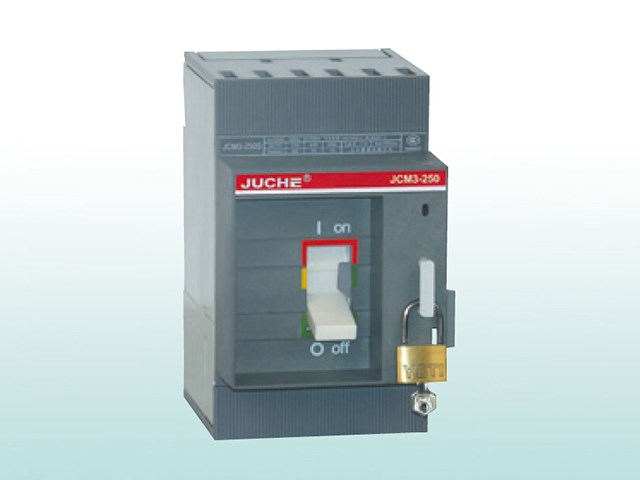

JCM3 Series Moulded Case Circuit Breaker
ApplicationJCM3 series moulded case circuit breaker ,it is suitable for the circuit of AC 50Hz (or 60Hz), rated insulation Voltage 660V, rated operating Voltage under AC 600V, 250V (DC) ,rated operating current 10-800A. It is for distribute energy of electricity and infrequent switchover in normal conditions .The MCCB rated current under 400A they are provided with the function of the protection against overload and short circuit and undervoltage. The MCCB complies with standard...
Application
JCM3 series moulded case circuit breaker ,it is suitable for the circuit of AC 50Hz (or 60Hz), rated insulation Voltage 660V, rated operating Voltage under AC 600V, 250V (DC) ,rated operating current 10-800A. It is for distribute energy of electricity and infrequent switchover in normal conditions .The MCCB rated current under 400A they are provided with the function of the protection against overload and short circuit and undervoltage. The MCCB complies with standard of IEC947-2.

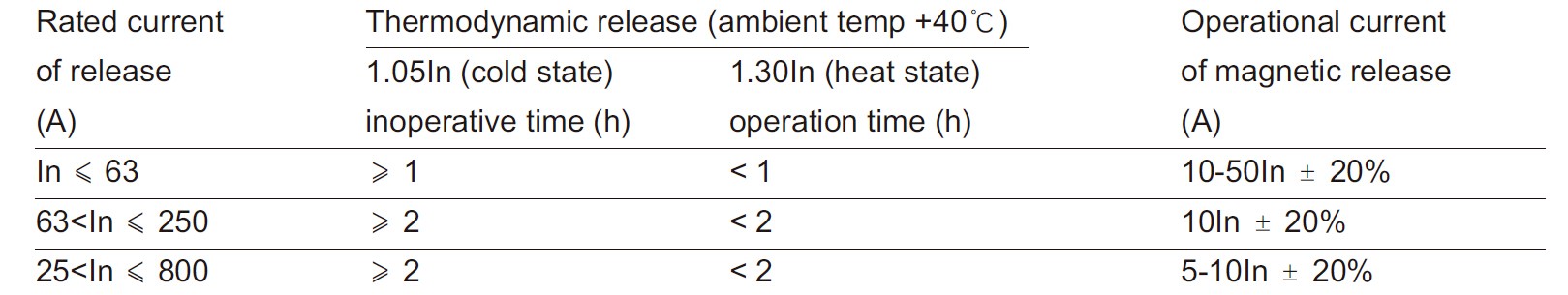

Tripping Characteristics of MCCB
