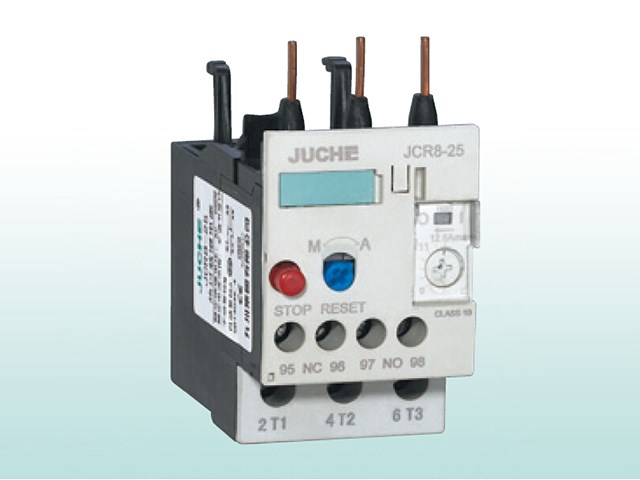

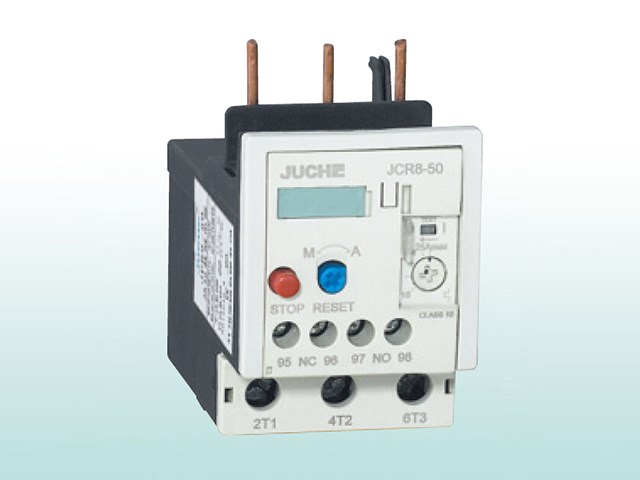

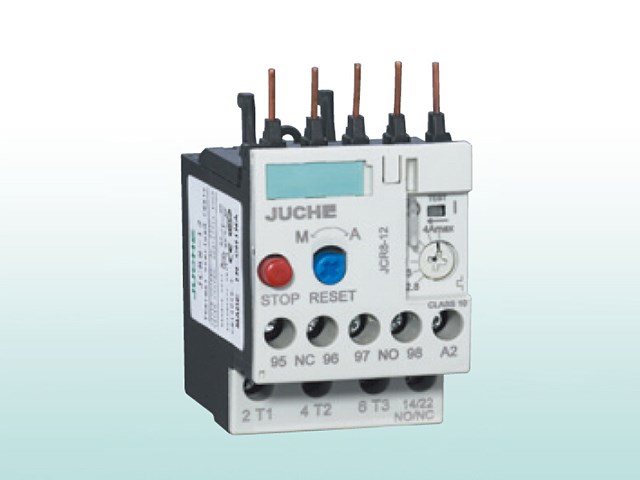

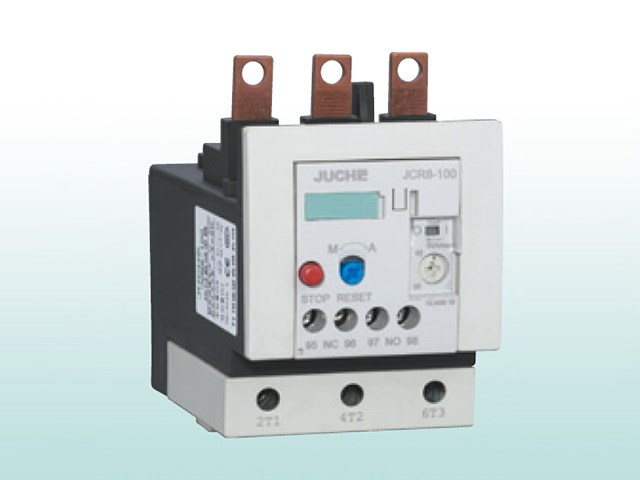

JCR8 Thermal Overload Relay

Atructure feature and technical feature

Auiliary contact: 1NO+1NC    Hand/auto reset    Tripping indication
    Stop button                        Test function           Phase failure protection
    Integral sealed                     protection cover   Tipping grade 10 grade

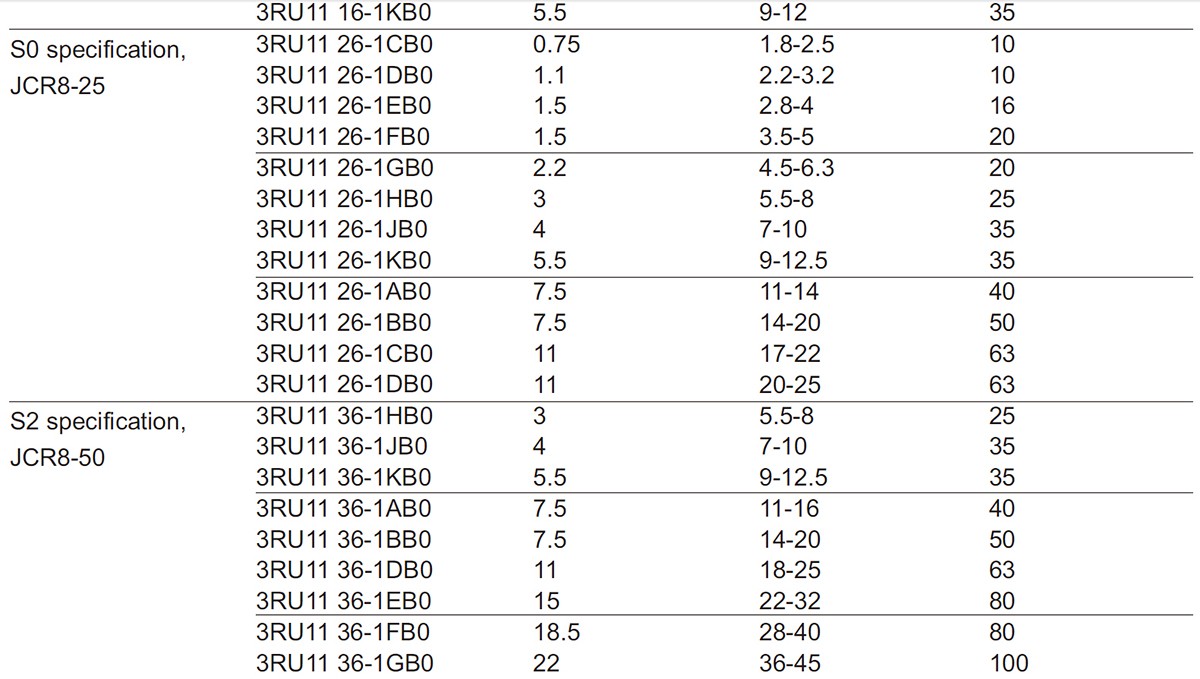

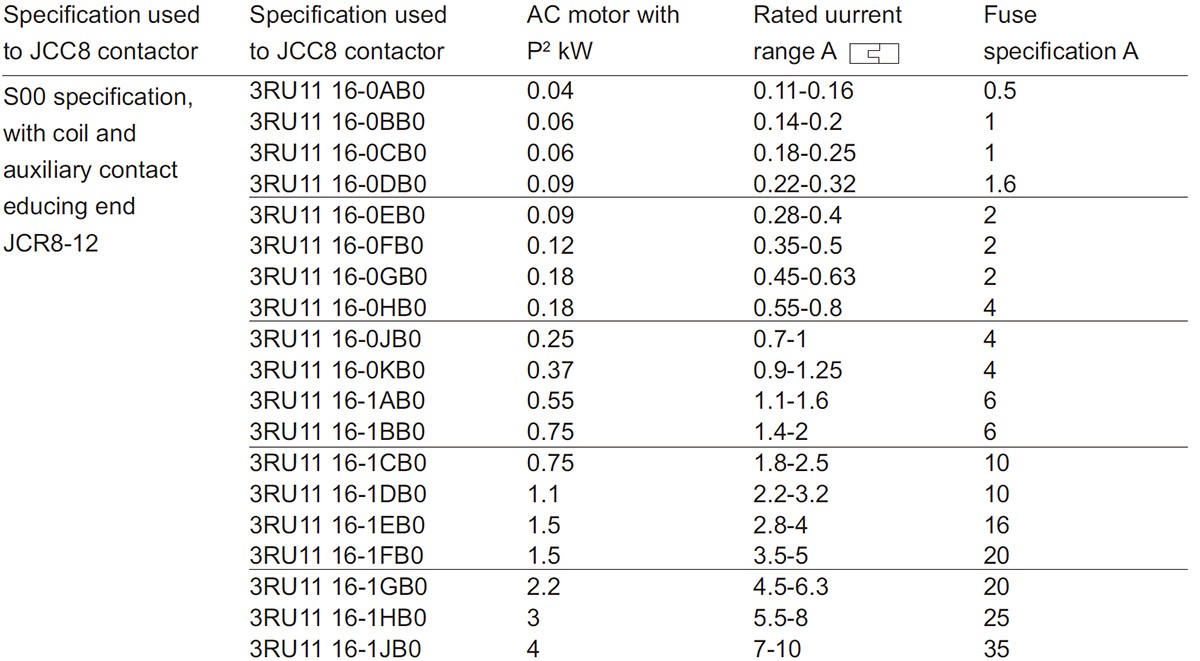

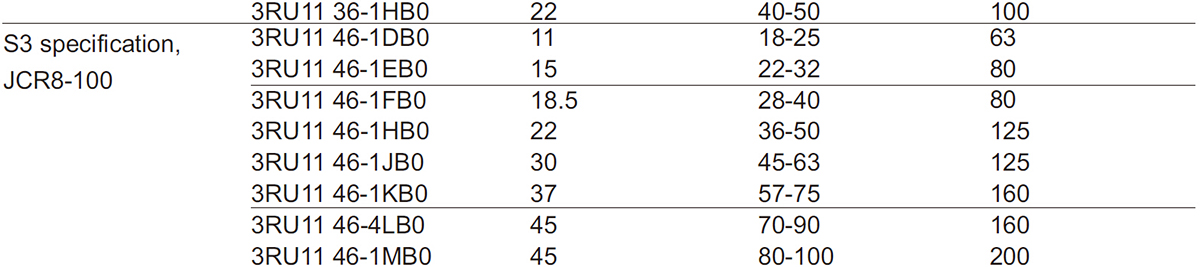

1) Pay attention to the max rated working current.
2) Reference value under AC50Hz and 400V condition, four-pole standard motor. To the product chosen relies on that the protected motor actual starting data and rated data.
3) Max fuse specification, to the overload relay, combine with the classification 2.
