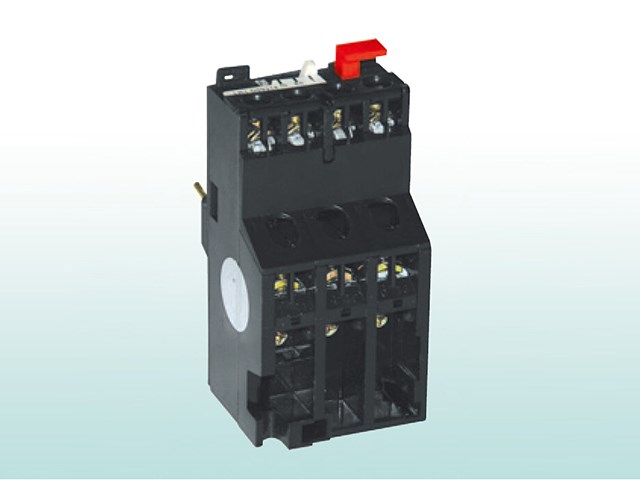

LR1-D Thermal Relay
LR1-D Thermal Relay
LR1-D Thermal Relay

LR1-Dseries thermal relay is suitable for thermal protection in the circuit with AC 50 or 60Hz .voltage up to 660V, motor power up to 45KW or less. It has different attachment and temperature compensating function. It can be fixed on to contactor and can also be fixed independently.

Description

Application

LR1-Dseries thermal relay is suitable for thermal protection in the circuit with AC 50 or 60Hz .voltage up to 660V, motor power up to 45KW or less. It has different attachment and temperature compensating function. It can be fixed on to contactor and can also be fixed independently.
The product is made in accordance with IEC292-1 LR1-Dseries thermal relay has kinds of species,9A, 12A,16A,25A,63A,80A.

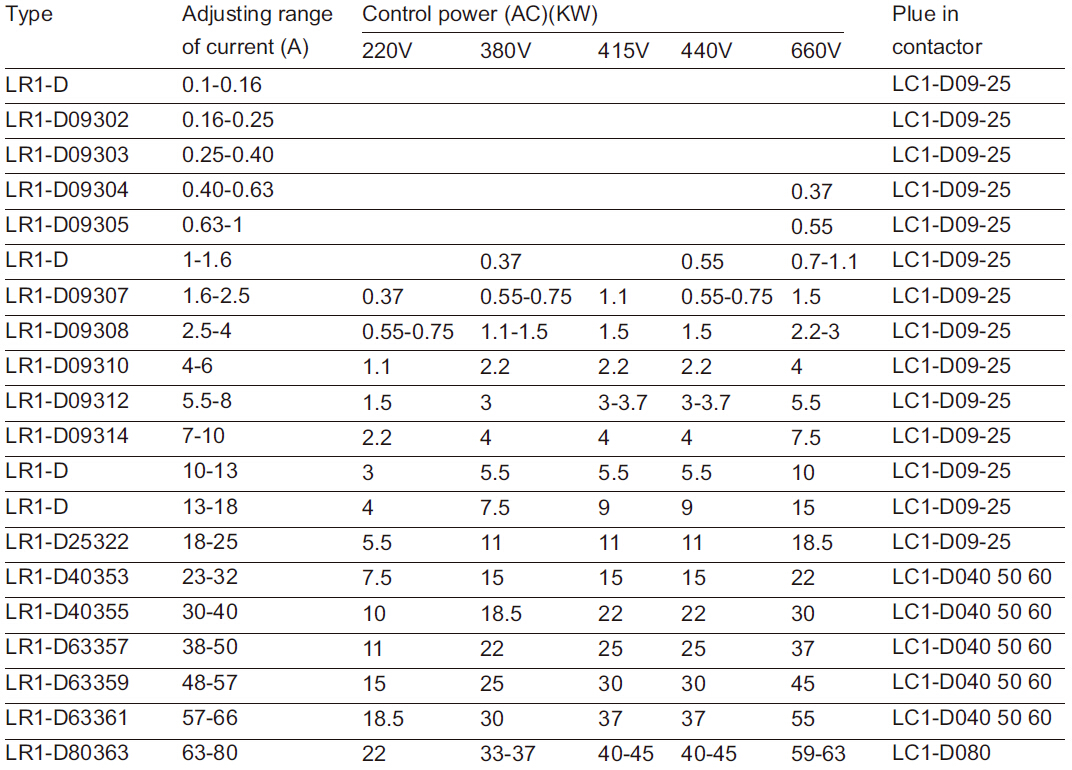

Technical Specifications
