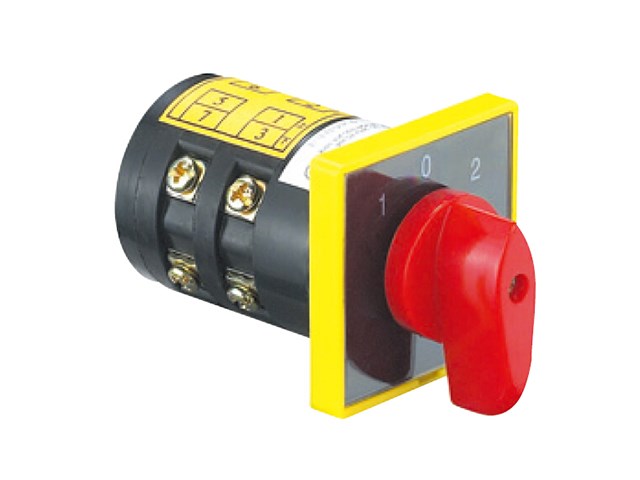

HZ5B Series Load Switch
HZ5B Series Load Switch
HZ5B Series Load Switch

1.1 HZ5B series load switch is improved Hz5, mainly applies in 440V and below AC 50HZ, for controlling motor.
1.2 The products are in conformity with standards GB14048.3, GB14048.5, IEC60947-3 and
IEC60947-5.

Description

1 Application

1.1 HZ5B series load switch is improved Hz5, mainly applies in 440V and below AC 50HZ, for controlling motor.
1.2 The products are in conformity with standards GB14048.3, GB14048.5, IEC60947-3 and IEC60947-5.

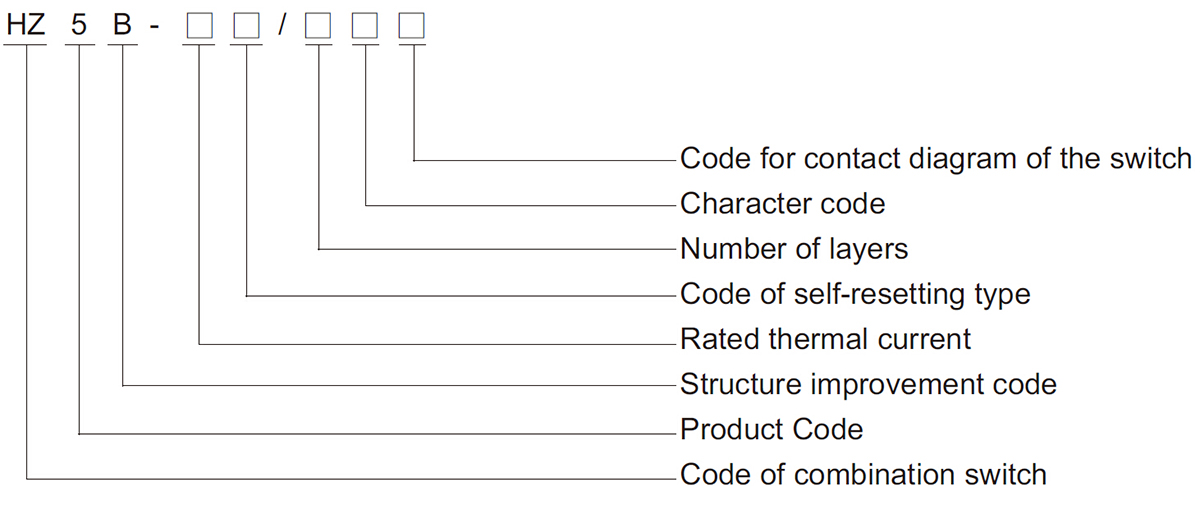

2 Model description




3 Classification

3.1 The HZ5B has two types: 10A and 20A
3.2 Classified by utilization: Change-over switch and Motor switch
3.3 Classified by contact system: 1~8 layer, 10 layer, totally 9 types.
3.4 Diagram for the operation and position of handle , 9 types

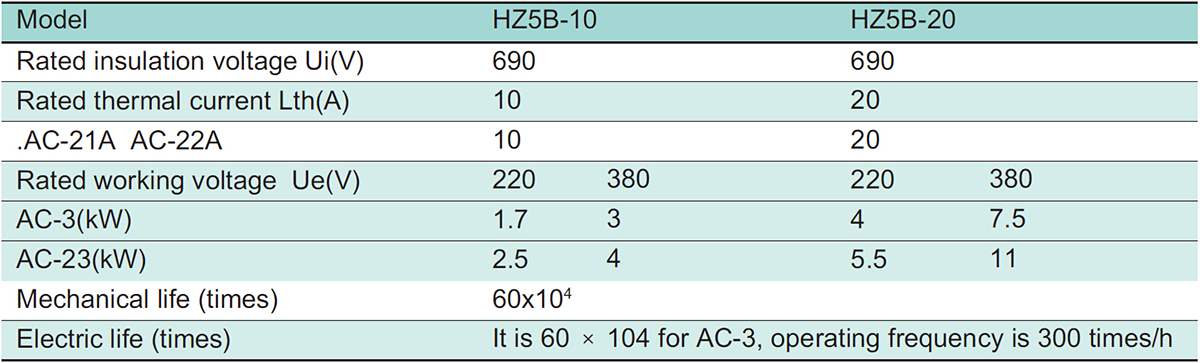

4 Technical parameters

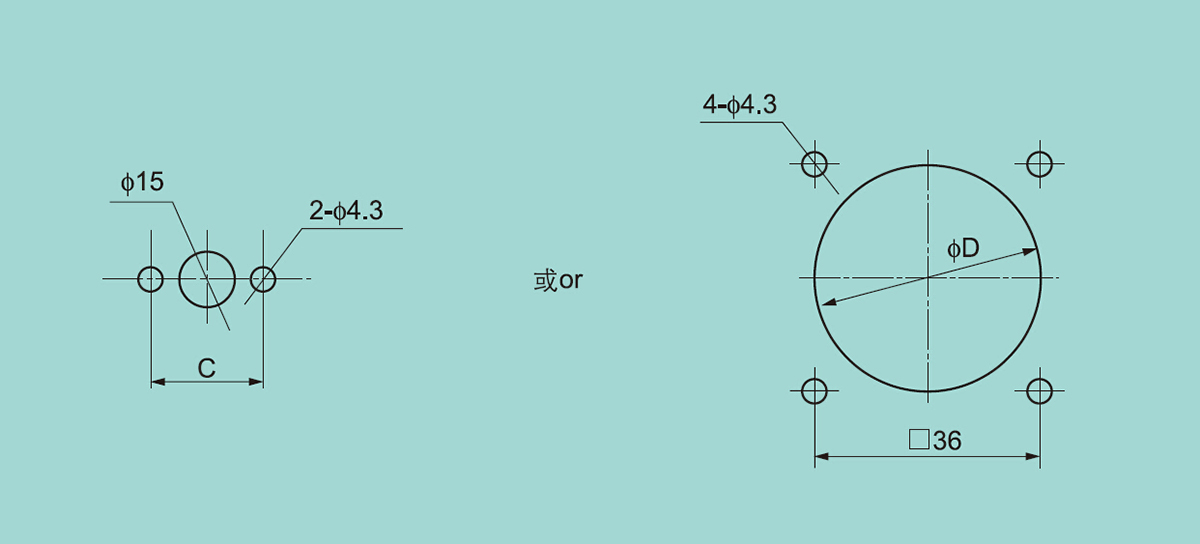

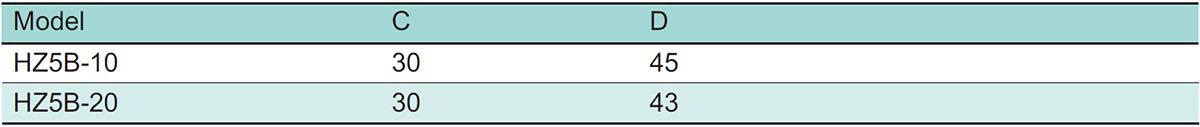

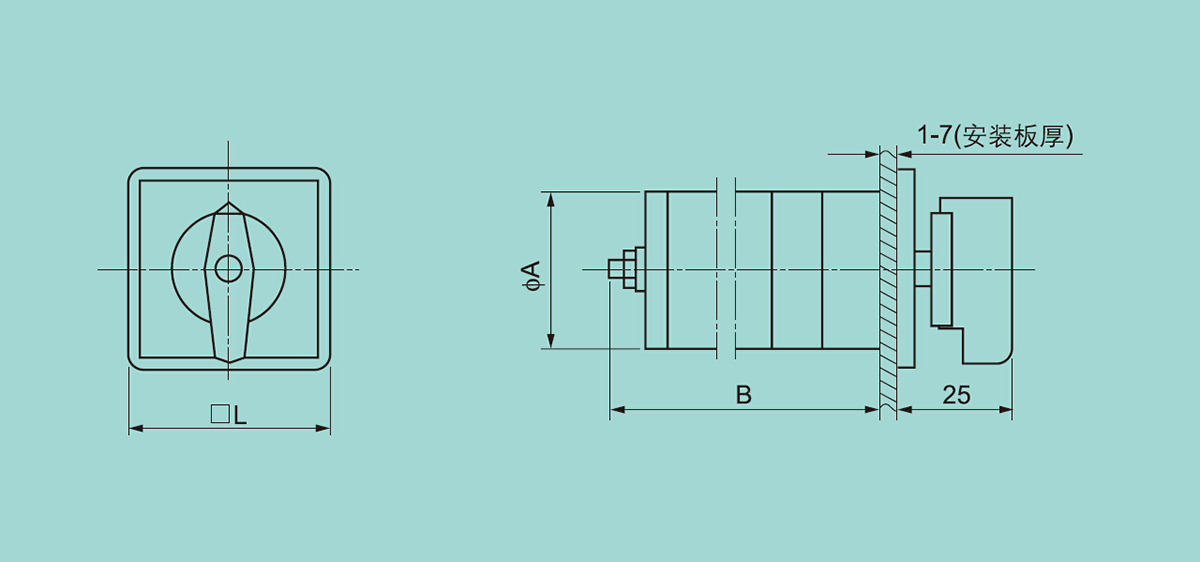

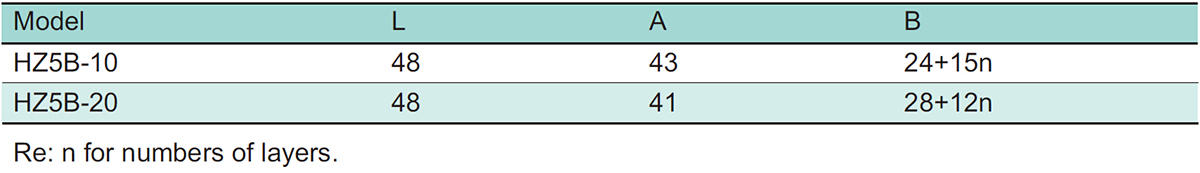

3 Installation & dimensions
