JCH13GS Series Pad-lock Switches
JCH13GS Series Pad-lock Switches
JCH13GS Series Pad-lock Switches

JCH13GS series Pad-lock type switches are derivatives of JCH13 series rotary switches. Installed in equipment where it requires a pad-lock to lock the switch in certain position. For instance, to fix the switch in ON position, to avoid the unauthorized personnel from operating the switch.

Description

1 General

1.1 JCH13GS series Pad-lock type switches are derivatives of JCH13 series rotary switches. Installed in equipment where it requires a pad-lock to lock the switch in certain position. For instance, to fix the switch in ON position, to avoid the unauthorized personnel from operating the switch.
1.2 JCH13GS series Pad-lock type switch complies with the GB14048.3 and IEC 60947-3

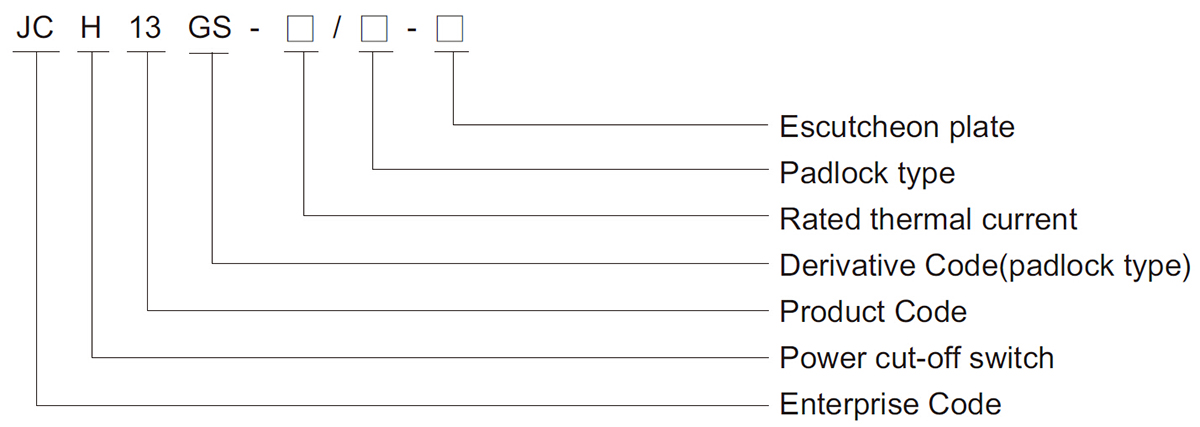

2 Model description

3 Classification

3.1 The JCH13GS series switch has 6 current rate:20A,25A,32A,63A,125A and 160A.For 20A and 25A is able to install M1 or M2 plate, and for 32A and 63A is able to install M2 or M3 plate, for 125A and 160A is able to install M3 plate only.The M1 plate is able to put 2 lockers, M2 and M3 is able
to put 3 lockers.
Re:-1-2-3 representing M1,M2,M3
3.2 the JCH13GS switch has two types
3.2.1 Normal type,(JCH13GS- /03), black plate black handle.

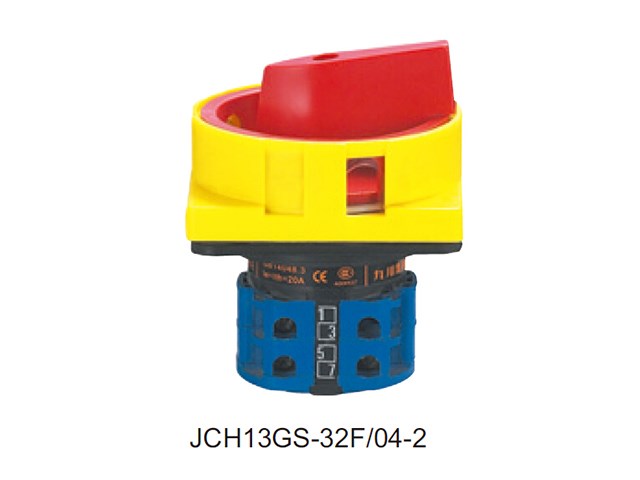

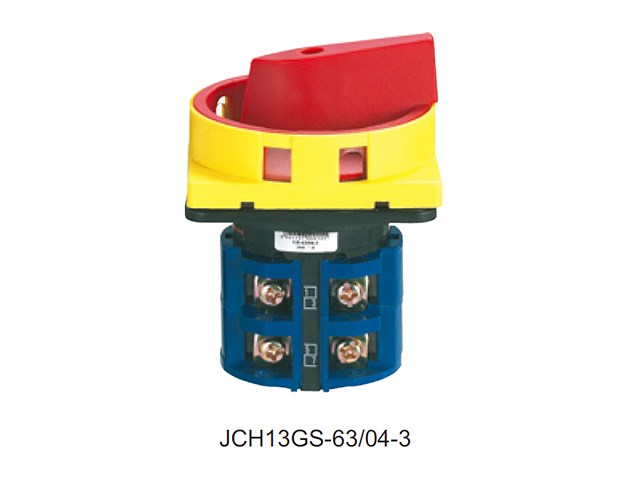

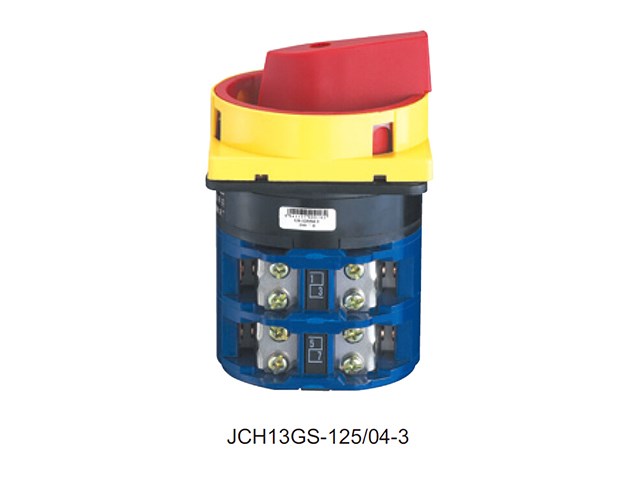

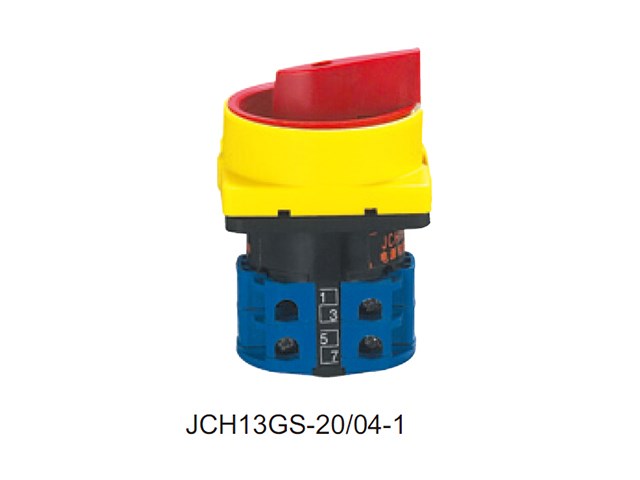

3.2.2 Emergency stop type (JCH13GS- /04), has emergency stop mark, yellow plate and red handle.

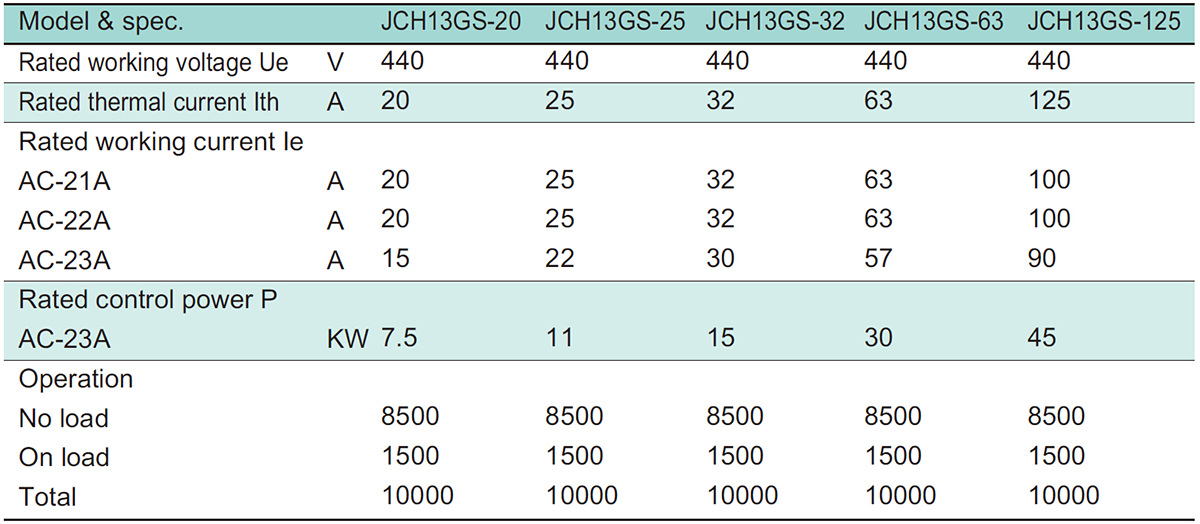

4 Technical parameters

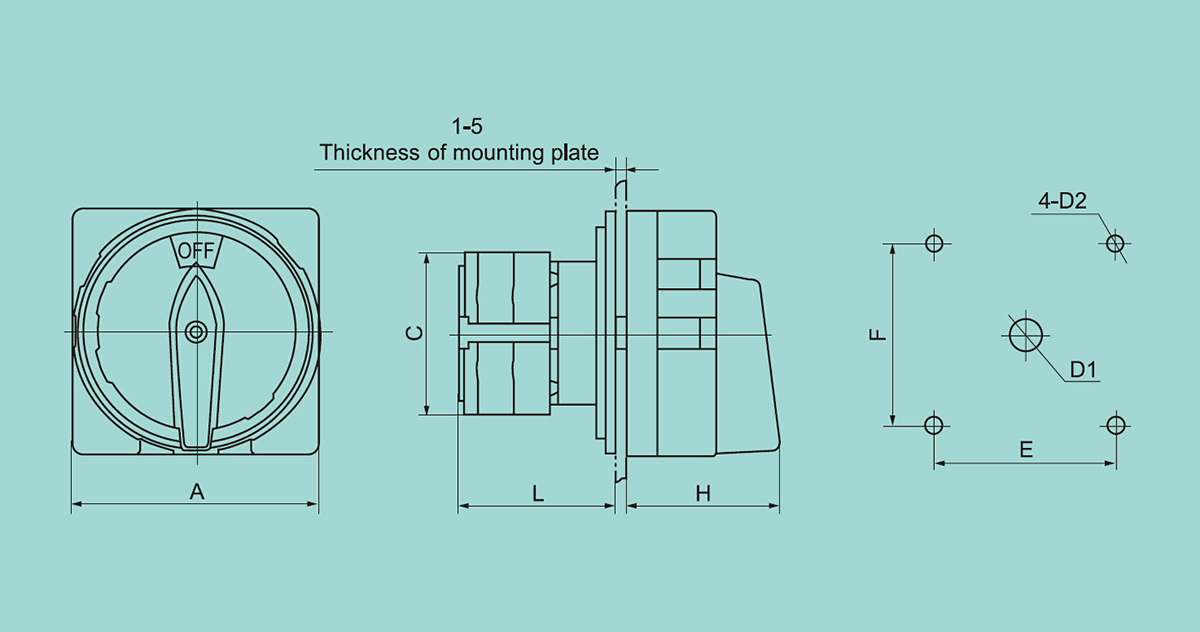

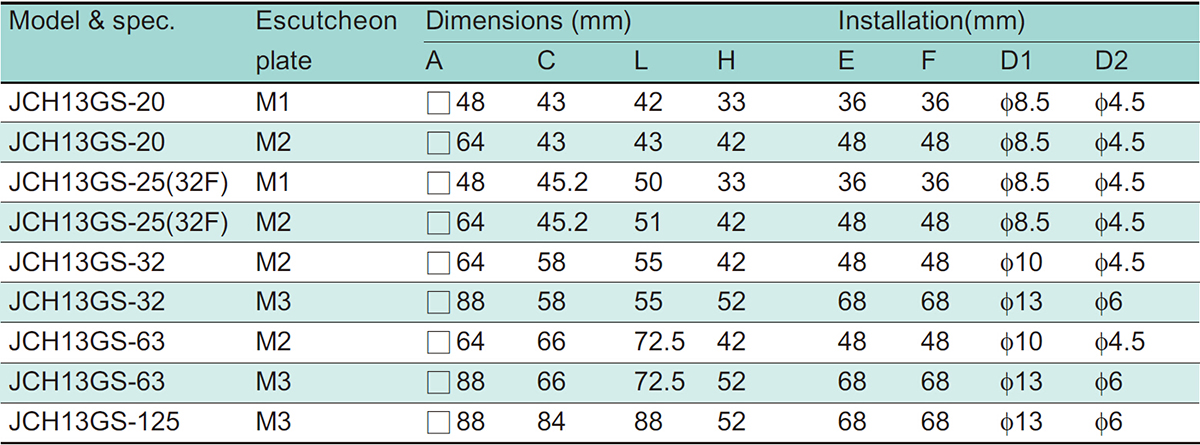

5 Installation and dimensions
