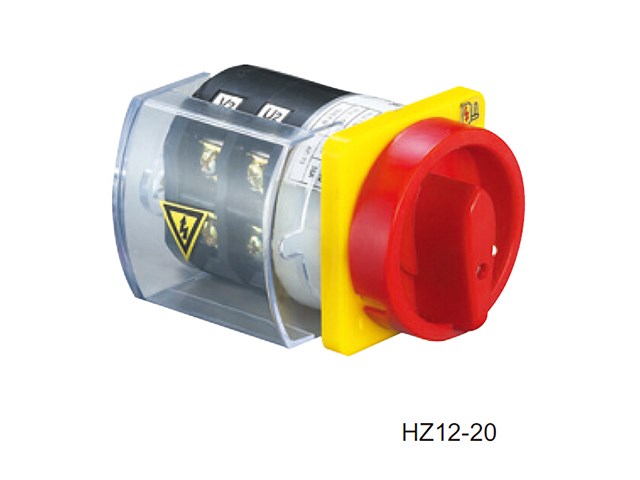

HZ12 Series Combination Switches
HZ12 Series Combination Switches
HZ12 Series Combination Switches

1.1 HZ12 series combination switch, also called power cut-off switch, is suitable for circuit of AC50Hz or 60Hz and rated working voltage up to 500V, it also can be used to close the motor and high inductive loads directly.

Description

1 Application

1.1 HZ12 series combination switch, also called power cut-off switch, is suitable for circuit of AC50Hz or 60Hz and rated working voltage up to 500V, it also can be used to close the motor and high inductive loads directly.
1.2 The products comply the GB14048.3 and IEC60947-3.

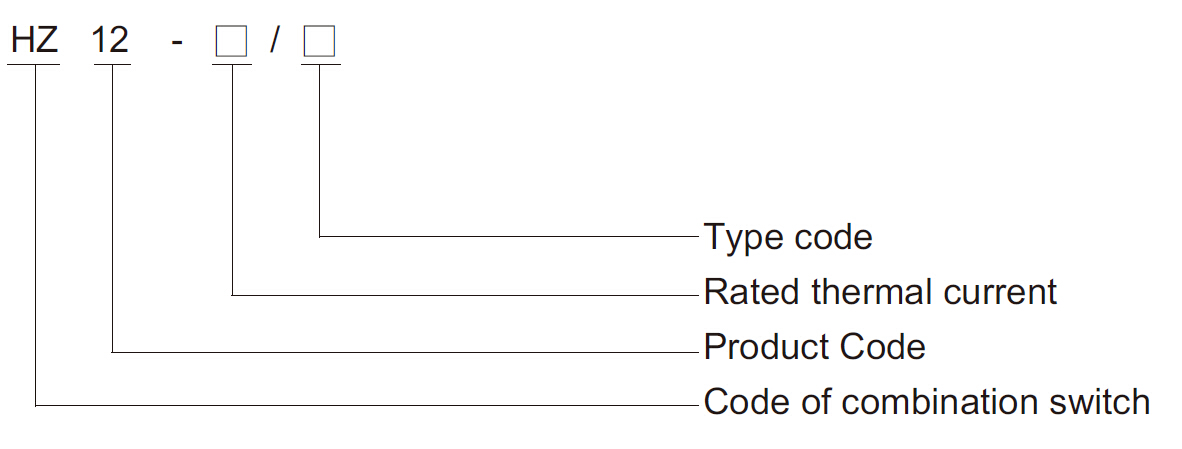

2 Model description



3 Classification

HZ12 Combination switches have basic type, padlock type and inter lock type.

Each type have normal and emergency stop type. Normal type use black plate and black knob.

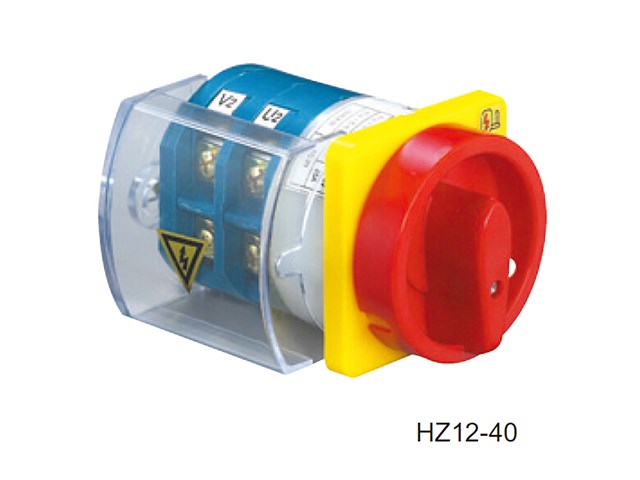

Emergency stop type use yellow plate and red knob.

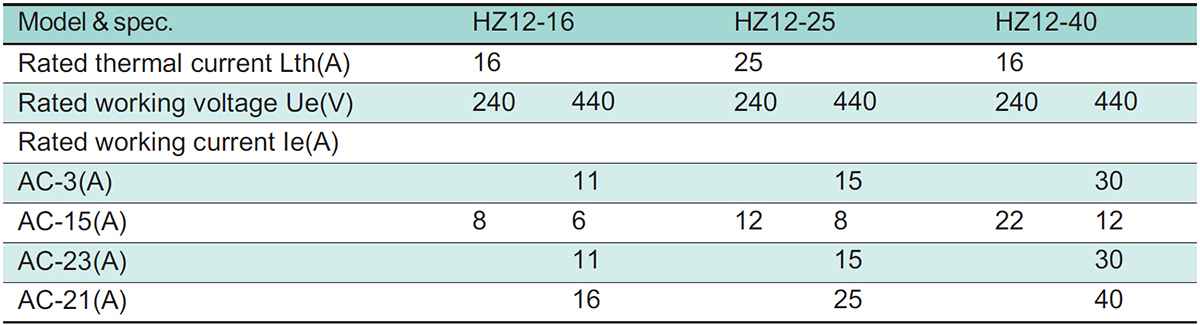

4 Technical parameters

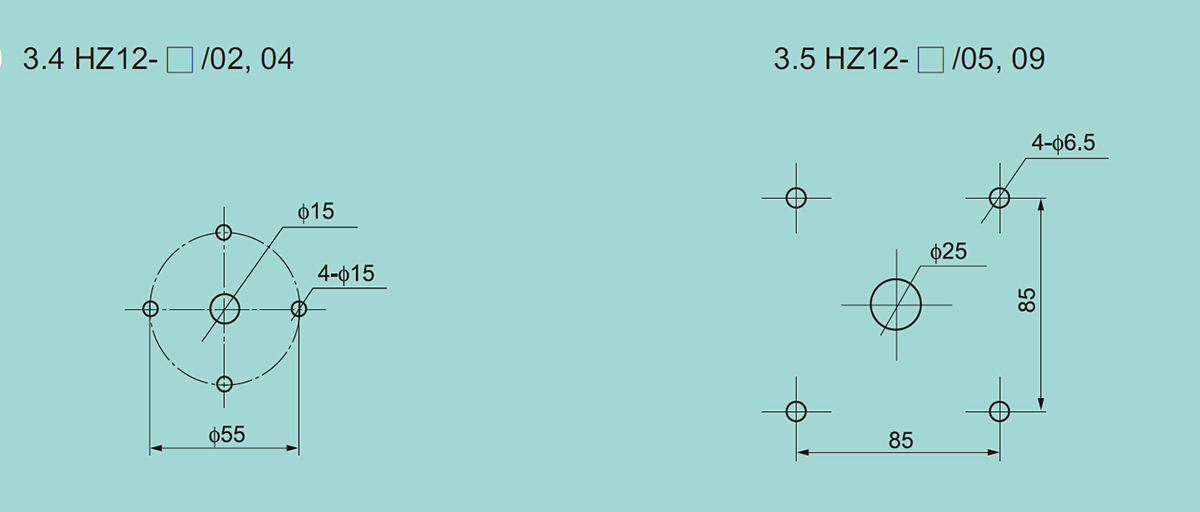

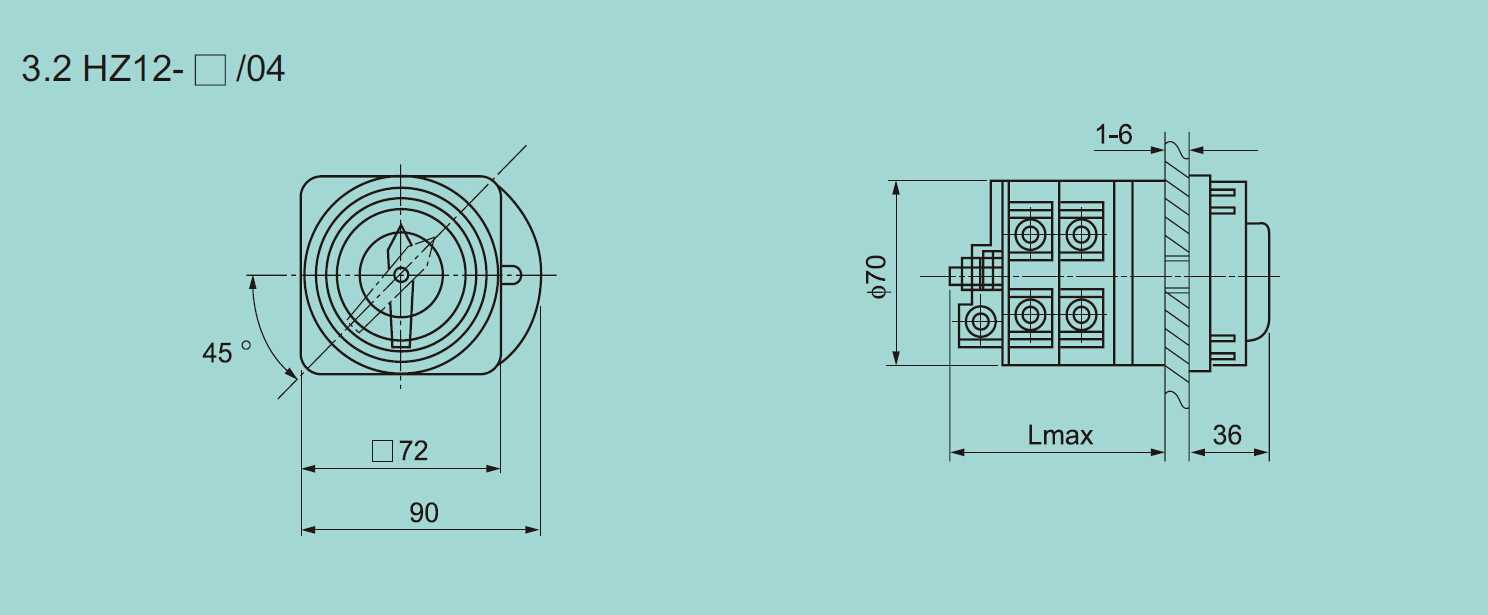

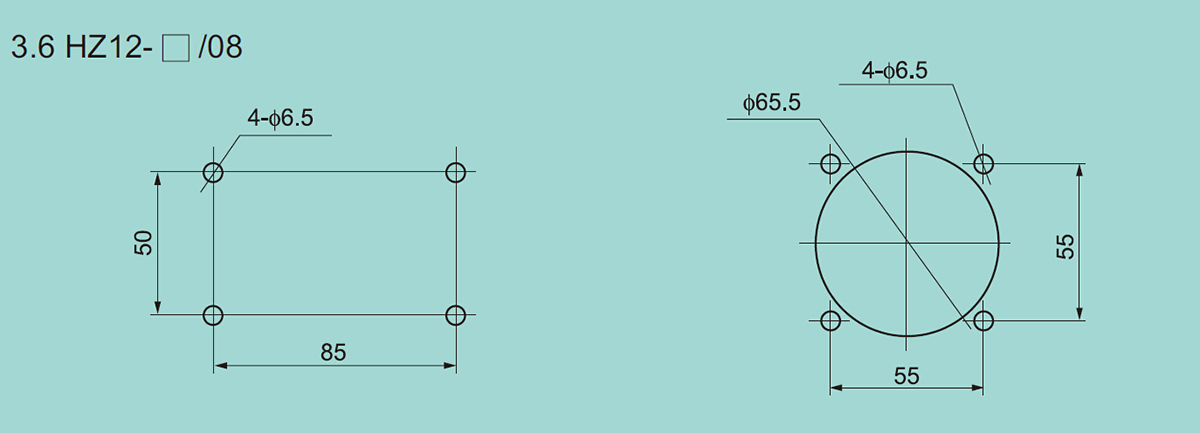

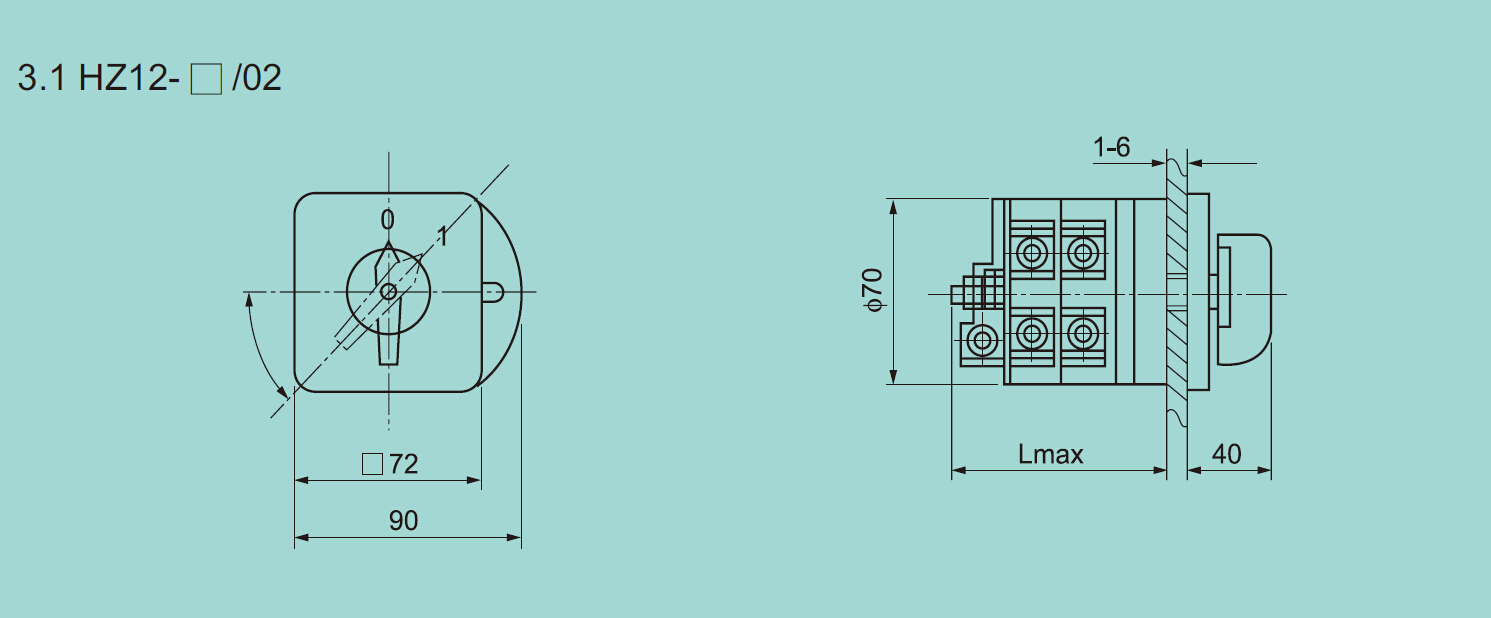

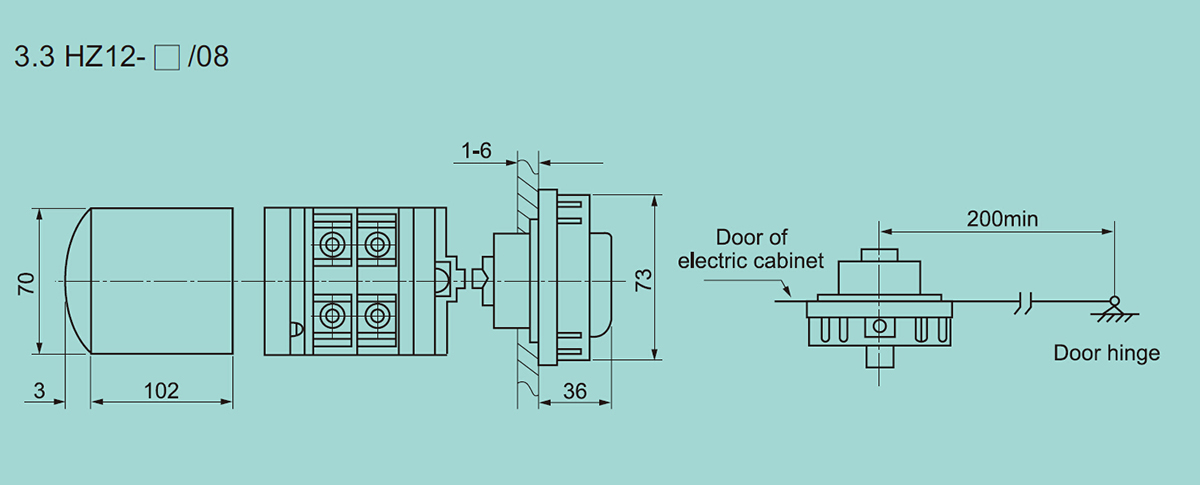

3 Installation & dimensions
