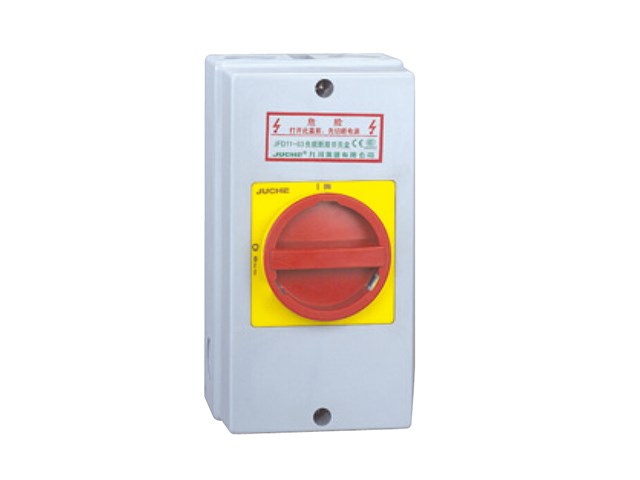

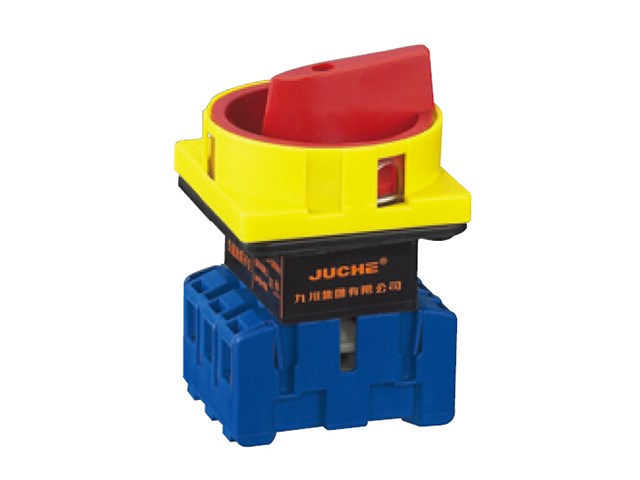

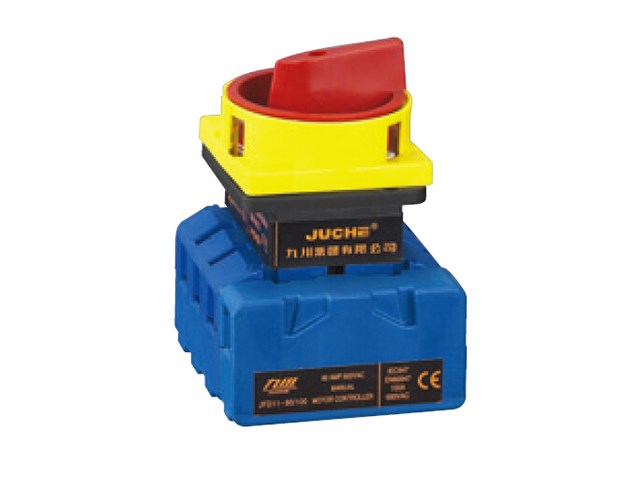

JFD11 Series Load Switch
JFD11 Series Load Switch
JFD11 Series Load Switch

JFD11 series load switch is mainly suitable for electric circuit of AC 50Hz, rated operating voltage up to 440V and rated current up to 100A, it is used as main switch for ventilation equipment, air-conditioners and water-pump systems, it also can be used to control low-capacity AC motor directly.

Description

1 General

1.1 JFD11 series load switch is mainly suitable for electric circuit of AC 50Hz, rated operating voltage up to 440V and rated current up to 100A, it is used as main switch for ventilation equipment, air-conditioners and water-pump systems, it also can be used to control low-capacity AC motor directly.
1.2 JFD11 series switch has complete specifications, including current classes 25A, 32A, 40A, 63A, 80A, 100A, etc.
1.3 The products are in conformity with GB14048.3 and IEC60947-3.

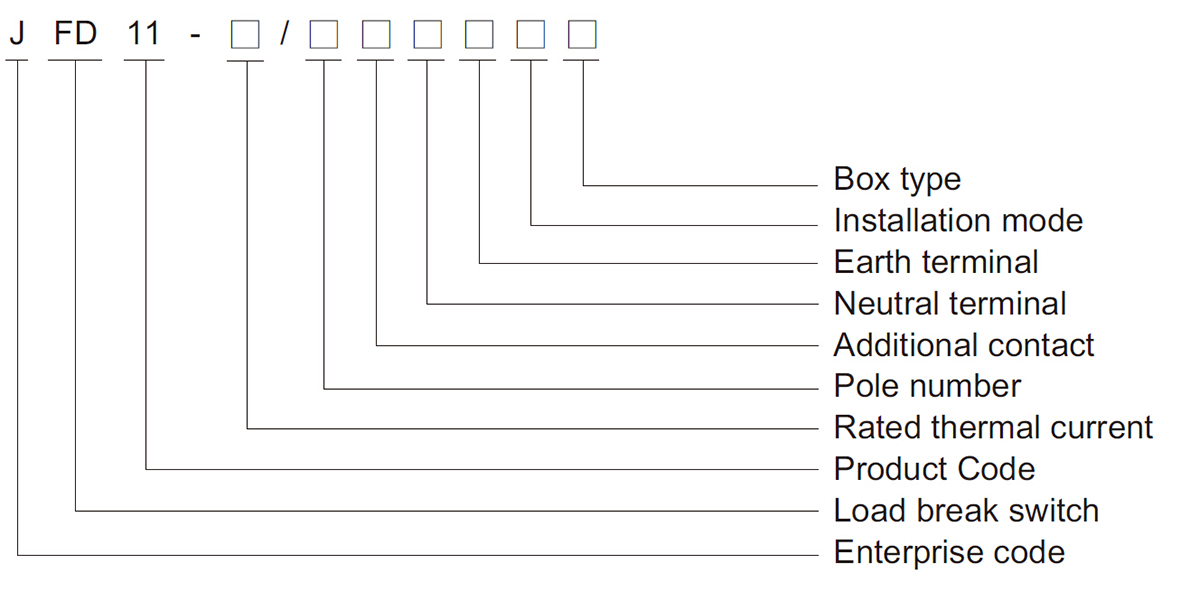

2 Model description

3 Working conditions

3.1 Ambient temperature Do Not exceed 40, and the average temperature ,measured over a period of 24 hours, Do Not exceed 35.
3.2 Ambient temperature Do Not less than -5
3.3 Should not be installed above 2000m above sea level.
3.4 The humility should not exceed 50% when the ambient temperature is 40 and higher humility is allowed for lower temperature.

4 Installation conditions

4.1 Pollution level 3 is required.
4.2 Please follow our manual.
5 Features

5.1 Miniaturized: compact structure, small volume, ideal performances.
5.2 Finger shield: finger shield function prevents from electric shock caused by contacting live parts accidentally.
5.3 Reliability: (1) Revolutionary new type contact operating mechanism guarantees movement of positive contacts, it not only can be used for breaking of contacts, but also can be used for making of contacts, make the position of switch operating handle be accordant with contact position, therefore, it provides high making and breaking capacity for normal control. (2) All contacts of switch have double actions of electrical apparatus switching and self-cleaning. During operation, surface of contact would be wiped up due to slide closing.
5.4 Safety: insulation distance of opened contacts of switch is as long as 7~8mm, advance beyond the safety requirements of VDE0113. Flexible installation type: the switch can adopt both panel type and base mounting type, the latter also can be installed with screws or guide-rail of 35mm conveniently and safely.

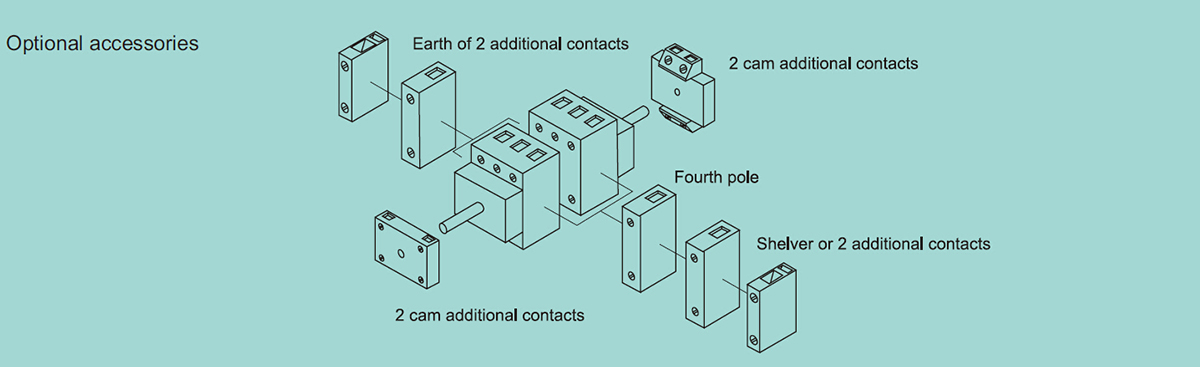

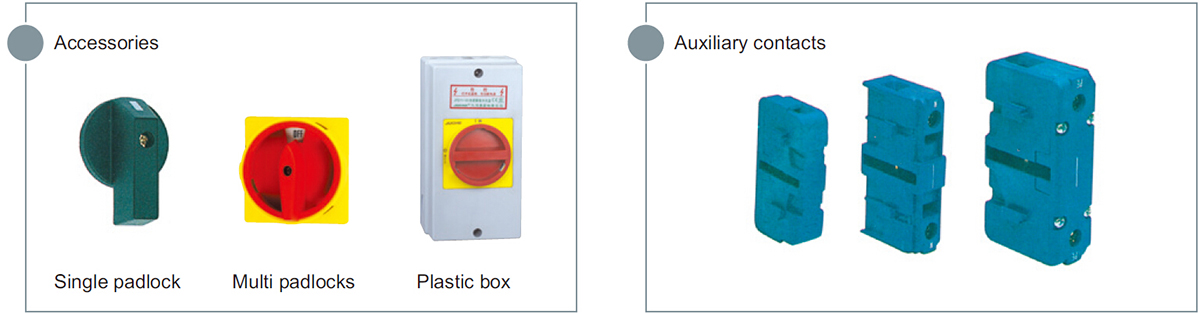

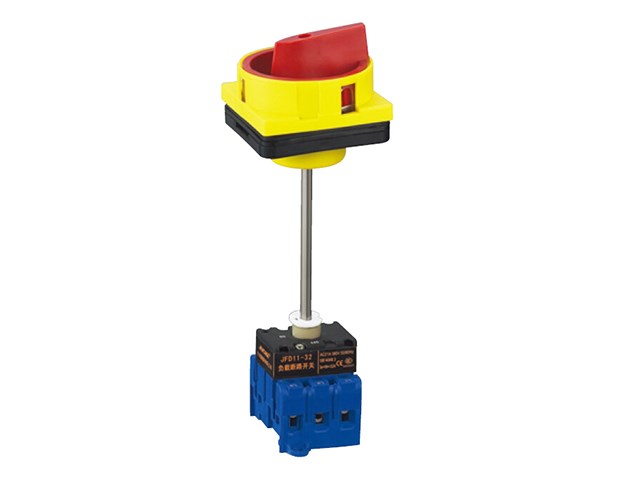

5.5 Modularized: flexible module system provides the strongest flexibility and adaptability for regulation of switch position, it has three-pole and six-pole standard modules, it is able to add additional contact block, shielding case, padlock handle, door interlock and other accessories easily, this characteristic especially suitable for location change.
5.6 Convenient installation: the built-in screw protects it from slipping during manual operation, which enables the pneumatic or electric tool to exert their best efficiency, guaranteeing safety and quick speed of installation. Switch with seal box: the switch can be equipped with indoor or outdoor insulated box. It can be equipped with steel sheet or stainless steel box body (for strong corrosive environment) and hot moulding box (with high impact strength). Ingress protection level is IP40-IP65.

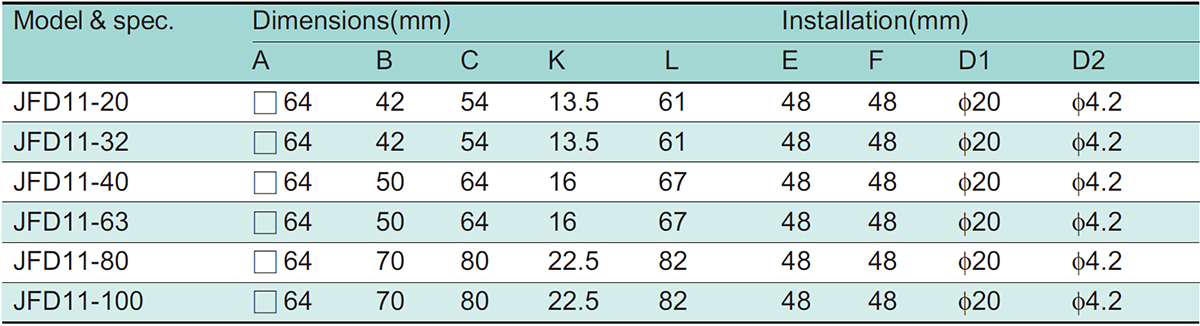

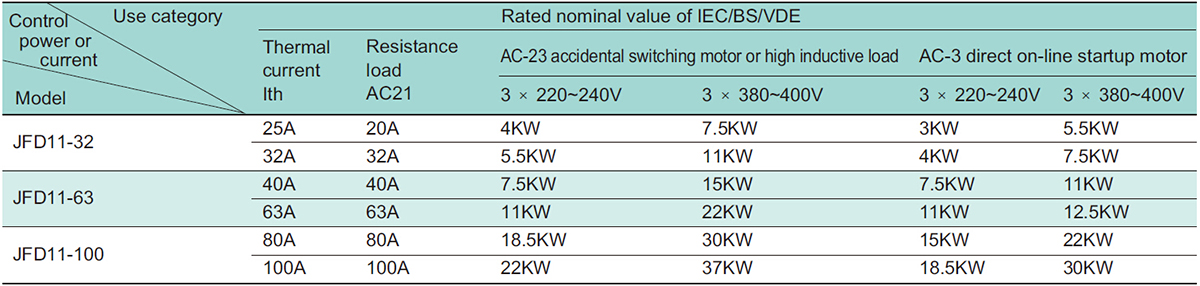

Technical parameters

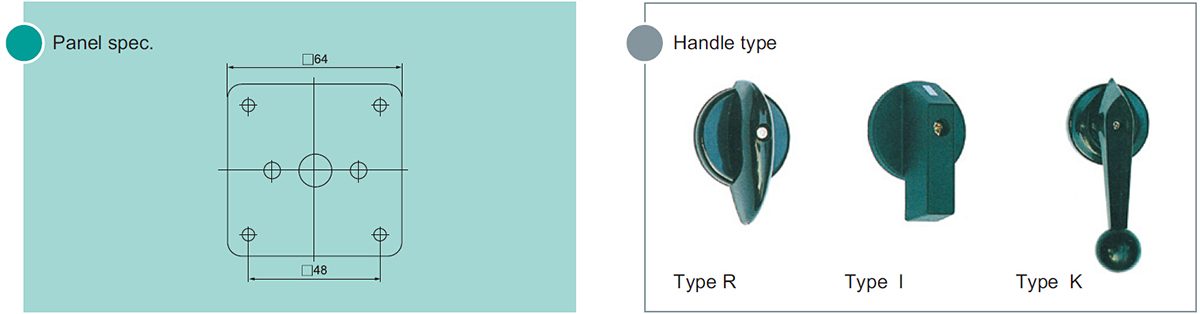

Panel and handle

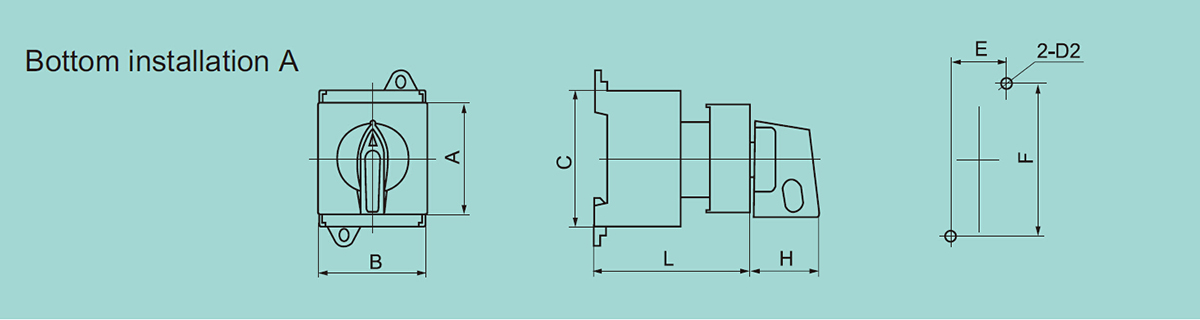

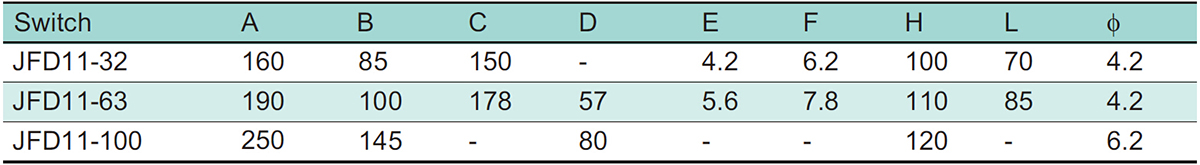

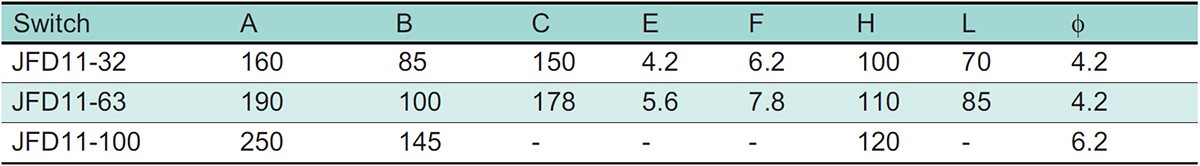

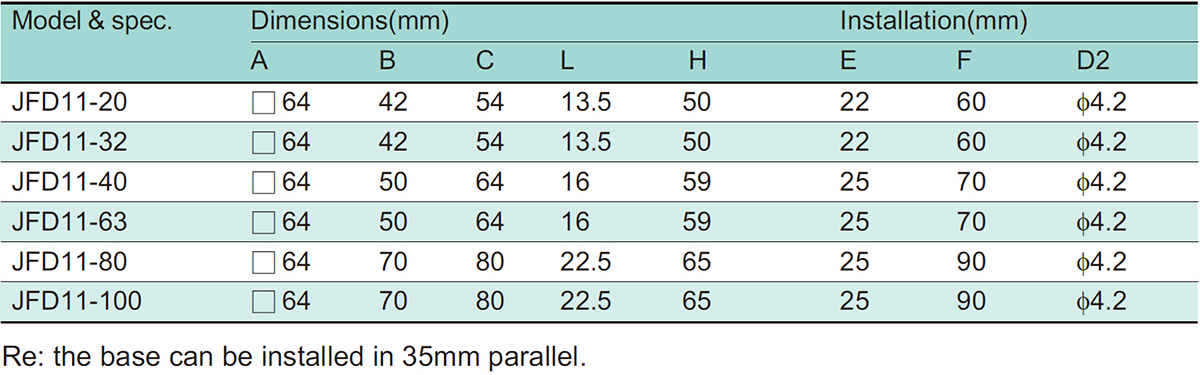

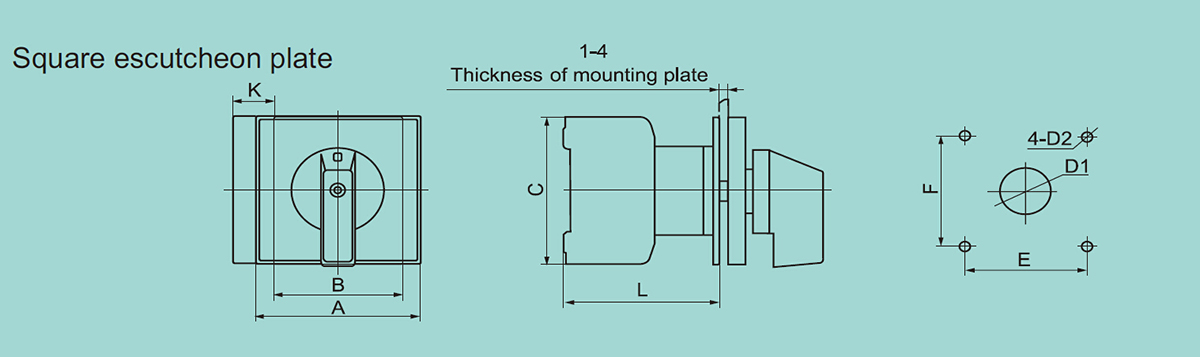

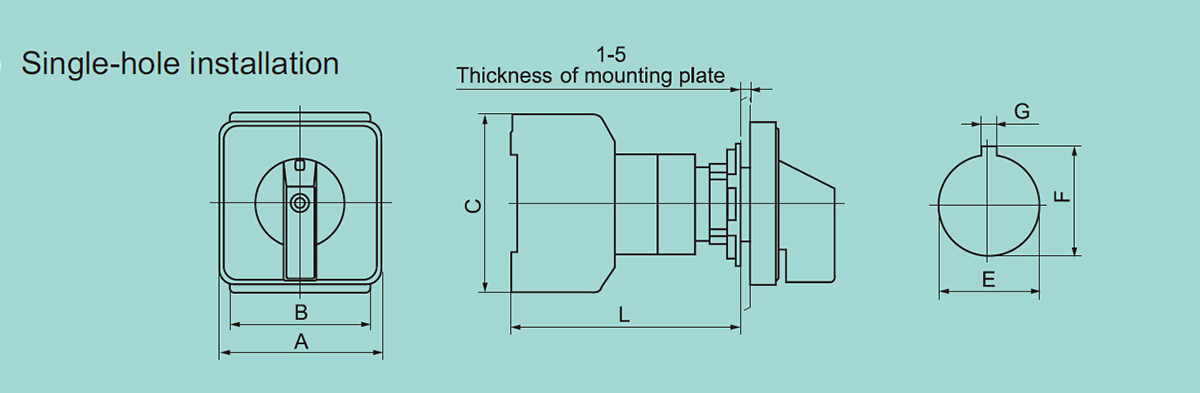

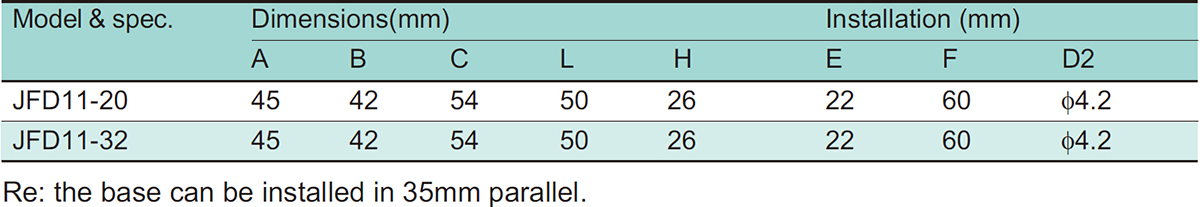

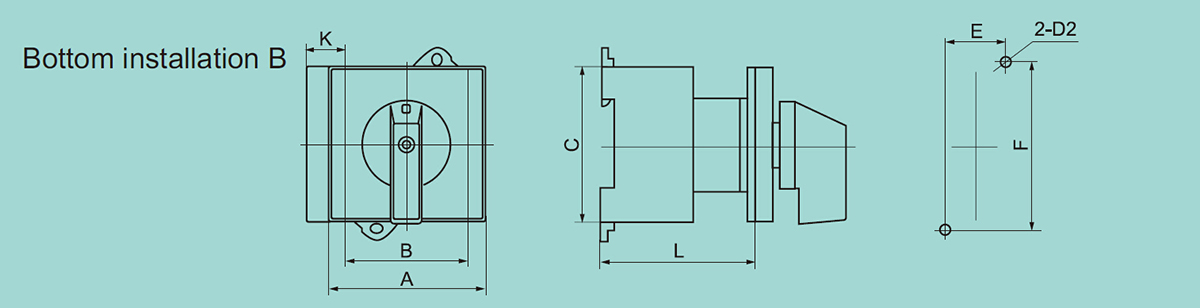

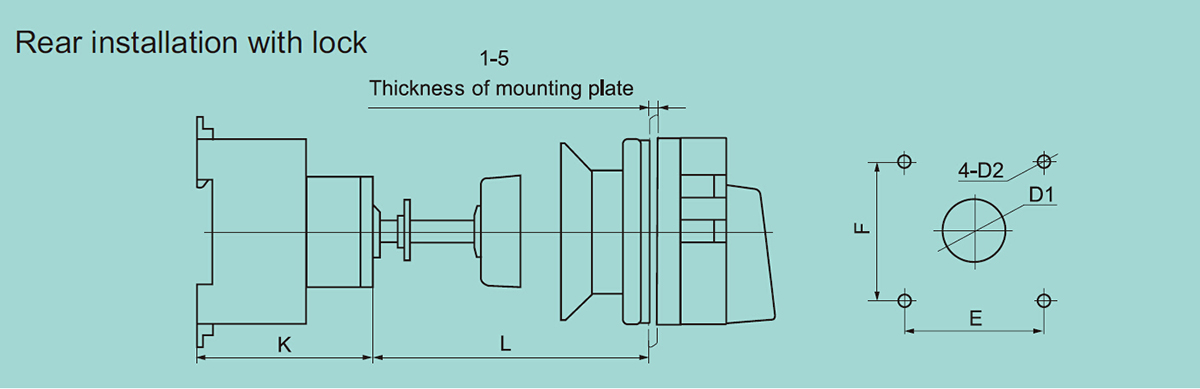

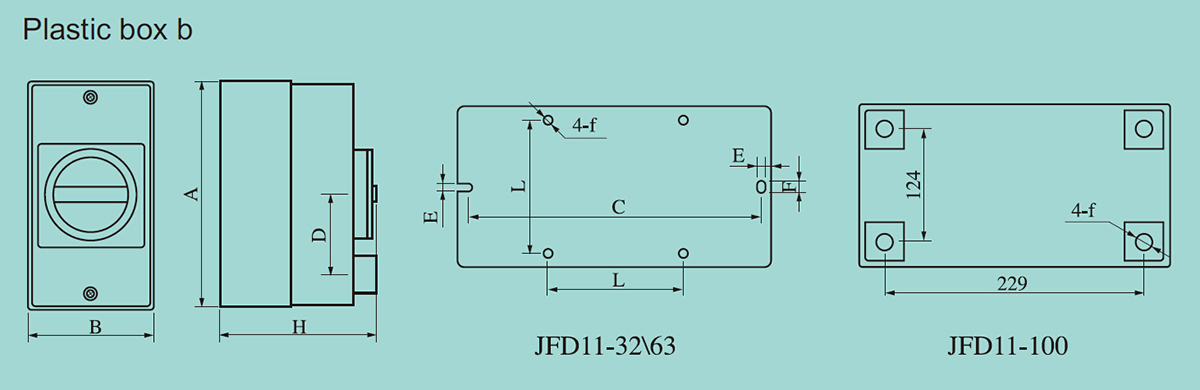

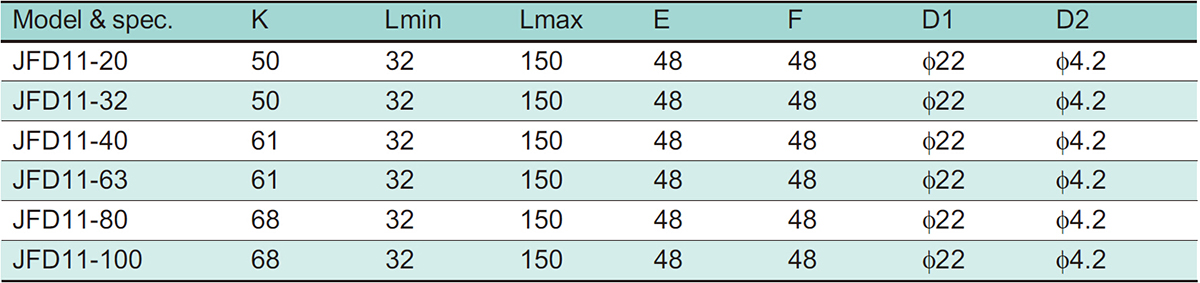

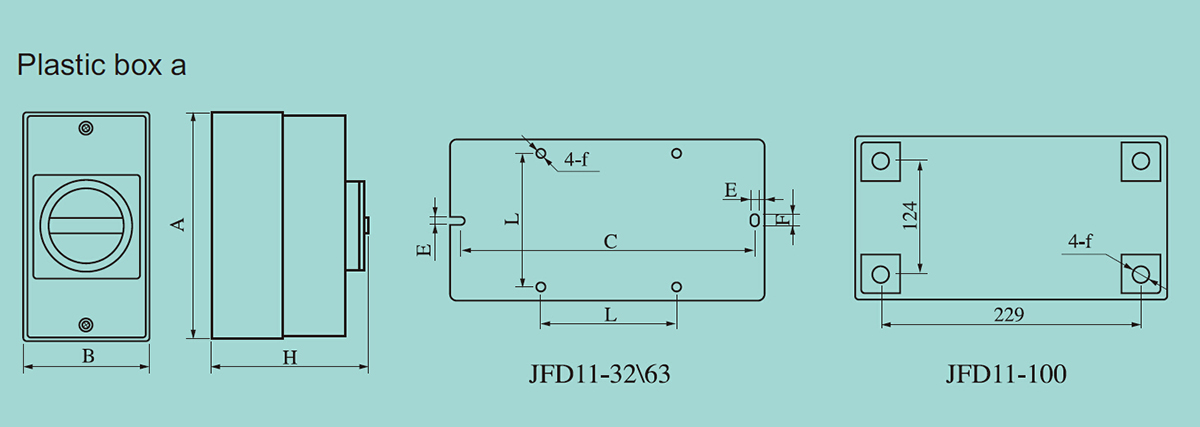

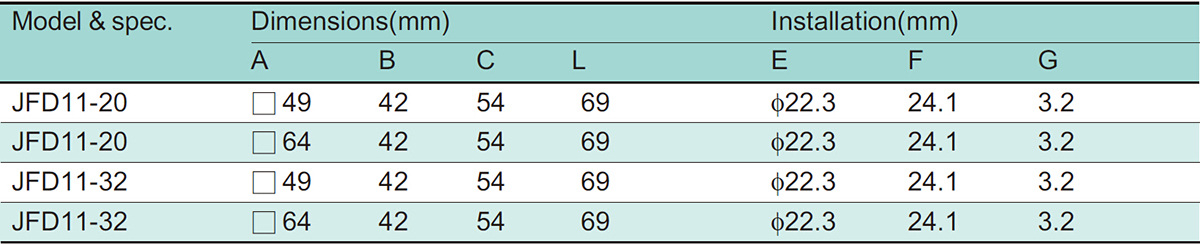

8 Dimensions

8 Order Procedure

When placing an order, please offer data as following:
8.1 Rated working current , for example JFD11-20
8.2 Accessorial code, please write it orderly
8.2.1 Number of poles, for example:3P
8.2.2 Do you need additional contacts :0 not inclosed, 1 inclosed.
8.2.3 Do you need neutral terminal: 0 not inclosed, 1 inclosed.
8.2.4 Do you need earthing terminal: 0 not inclosed, 1 inclosed.
8.2.5 Installation code
A. Escutcheon plate with pad-lock B. Escutcheon plate C. Single lock parallel installation
D. Doorlock safety switch with padlock system E. Single hole installation
8.2.6 Box type : 0 not inclosed, 1 inclosed.
8.3. Other accessorial code, please write it orderly
8.3.1 Type of Escutcheon plate: 1Escutcheon plate 2Denote φ 22.5 hole 3Denote φ 25 hole 4Denote φ 30.5 hole
8.3.2 Do you need Escutcheon plate with airproof: 0 Not order it,1 order it.
8.3.3 Color of bottom plate: 1Denote silver color 2Denote yellow 3Color you appointed
8.3.4 Lettering digits: 2 means the letter, 3 means the character, 4 means special mark;
8.3.5 Please indicate the handle code in the fourth additional code: such as R or I or K, we usually supply R type if there is no indication.
8.4 If there are other special requirements, please contact with us.

Example 1: 40A/3-pole with additional contact and earth terminal, without neural terminal or switch box, panel installation, it can be expressed as JFD11-40/310120

Example 2: 32A/3-pole base installation with door interlock, it can be expressed as JFD11-32/300040

Example 3: 40A/3-pole with additional contact and earth terminal, without neural terminal or switch box, panel installation, sealing shaft, yellow background, character, K type handle, it can be express as JFD11-40/310120.1123K.
